93 f150 4x4 brake rotor-hub dissasembly

hi got a 93 f150 and i currently have manual locking hubs but i got the papers from the dealership saying i had auto-locking hubs. i have to remove the rotors right now im taking th hub assembly apart. and my friend gave me the tool that you need for the nut(his has 4 points on it that is for a 1/2 ton but it wouldnt fit on mine. so i got a spindle nut rental kit from Advance auto and mine is the 6 point socket which is for 3/4 ton(dont know why)). i have the outside c-clip removed and the c-clip around the spindle but thier is something like a washer thing around the spindle behid the c-clip.

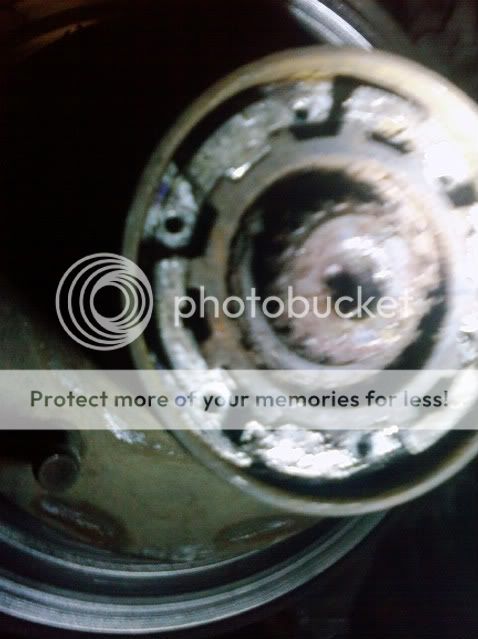

here is a picture
Click the image to open in full size.
now is thier a difference between the auto and manual hub switch that i should know about when taking it off? i helped my friend take his off his truck before and didnt have this much trouble.

is my next step
-removing the nut? or do i have to take that washer type seal off?
__________________
1993 F150 4.9l 5spd 4x4, 128,000 miles.
NEW!! 1986 Bronco 4.9l 4spd Granny 4x4
Reply With Quote
  #2
Old 01-12-2010, 08:01 PM
zxwut?'s Avatar
zxwut? zxwut? is offline
Posting Guru

Join Date: Jan 2009
Location: Afghanistan!~
Posts: 1,734
zxwut? is gaining momentum as a positive member of FTE.zxwut? is gaining momentum as a positive member of FTE.
Remove the snap ring on the axle and any washers behind it then put two screws back into the hub body opposite each other and pull.
__________________
2009 Focus
2008 Hayabusa with lots o' engine/suspension/brake stuff done, 190hp, 113ft lbs torque......without the nitrous
2006 Husqvarna SM510R uncorked and unrestricted
2003 Honda 954RR all stock
Reply With Quote
  #3
Old 01-13-2010, 06:49 AM
|WYG|SS's Avatar
|WYG|SS |WYG|SS is offline
Senior User

Join Date: Sep 2009
Posts: 379
|WYG|SS is starting off with a positive reputation.
dont i use that socket and put it on that silver outside part(that is in the picture) of the hub assembly. i will try and get a better picture when i try it again today.
__________________
1993 F150 4.9l 5spd 4x4, 128,000 miles.
NEW!! 1986 Bronco 4.9l 4spd Granny 4x4
Reply With Quote
  #4
Old 01-13-2010, 07:19 AM
danr1 danr1 is offline
Post Fiend

Join Date: Aug 2006
Location: Sand Lake, MI
Posts: 5,263
danr1 has a great reputation on FTE.danr1 has a great reputation on FTE.danr1 has a great reputation on FTE.danr1 has a great reputation on FTE.danr1 has a great reputation on FTE.
dont i use that socket and put it on that silver outside part(that is in the picture) of the hub assembly.

Nope that's the lockout, the wheel bearing nuts are behind it,

Dana 44 Hub Rebuild w
__________________
1994 F250 RC 5.8L E4OD 4x4 3.55
1995 F250 SC 7.5L E4OD 4x4 3.55
1997 F350 RC 5.8L ZF 4x4 3.55
Reply With Quote
  #5
Old 01-13-2010, 11:11 AM
zxwut?'s Avatar
zxwut? zxwut? is offline
Posting Guru

Join Date: Jan 2009
Location: Afghanistan!~
Posts: 1,734
zxwut? is gaining momentum as a positive member of FTE.zxwut? is gaining momentum as a positive member of FTE.
After the hub body is out, use the sockets to pull off the first nut, then remove the washer that is sandwiched in between then remove the second nut. Use a breaker bar to remove at least the first one. The second one will come off fairly easily. After that, just grab the hub and slide it off. Be ready to catch the wheel bearing that will try to jump out of the front where the hub body slid out. The bearing in the back is held in by a seal.
__________________
2009 Focus
2008 Hayabusa with lots o' engine/suspension/brake stuff done, 190hp, 113ft lbs torque......without the nitrous
2006 Husqvarna SM510R uncorked and unrestricted
2003 Honda 954RR all stock
Reply With Quote
  #6
Old 01-13-2010, 12:10 PM
andym's Avatar
andym andym is offline
Post Fiend

Join Date: Mar 2002
Location: Sacramento, CA
Posts: 16,489
andym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputation
There are two snap rings holding the hub in place. One rides on the end of the axle shaft (it looks like you got that one off) and the other you can barely see. It's just inside the lip of the hub. If you stick a small screwdriver between the lockout and the hub housing, you will feel the snap ring about 1/8" inside. If you run the screwdriver all the way around you will eventually find the break in the snap ring. I use the tip of a knife and a very small allen wrench to get it out. It takes a little practice but once you get the hang of it it's easy.

You use the spindle socket after you get the lockout out. You don't need the 6-prong one, your truck uses the 4-prong one.
__________________
Andy

2000 Excursion Limited 7.3L 4x4

"If you want to live in a country that manufactures things, you need to buy things that your country manufactures." - Mike Rowe
Reply With Quote
  #7
Old 01-13-2010, 02:43 PM
|WYG|SS's Avatar
|WYG|SS |WYG|SS is offline
Senior User

Join Date: Sep 2009
Posts: 379
|WYG|SS is starting off with a positive reputation.
yep got that one on the hub housing. i remembered that one when i helped my friend do his truck. now its just that the hub assembly doens want to budge.
__________________
1993 F150 4.9l 5spd 4x4, 128,000 miles.
NEW!! 1986 Bronco 4.9l 4spd Granny 4x4
Reply With Quote
  #8
Old 01-13-2010, 02:47 PM
andym's Avatar
andym andym is offline
Post Fiend

Join Date: Mar 2002
Location: Sacramento, CA
Posts: 16,489
andym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputation
If you got both snap rings then just thread a couple of the cover screws back into the hub and it should pull out.
__________________
Andy

2000 Excursion Limited 7.3L 4x4

"If you want to live in a country that manufactures things, you need to buy things that your country manufactures." - Mike Rowe
Reply With Quote
  #9
Old 01-13-2010, 03:51 PM
F150xlt F150xlt is offline
Posting Guru

Join Date: Jan 2002
Location: Baltimore
Posts: 1,303
F150xlt has a very good reputation on FTE.F150xlt has a very good reputation on FTE.F150xlt has a very good reputation on FTE.
The housing for the manual locking hub assembly is cracked in quite
a few places.

Click the image to open in full size.
Reply With Quote
  #10
Old 01-13-2010, 04:18 PM
andym's Avatar
andym andym is offline
Post Fiend

Join Date: Mar 2002
Location: Sacramento, CA
Posts: 16,489
andym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputation
Quote:
Originally Posted by F150xlt View Post
The housing for the manual locking hub assembly is cracked in quite
a few places.
Good eye, I didn't even see that.
__________________
Andy

2000 Excursion Limited 7.3L 4x4

"If you want to live in a country that manufactures things, you need to buy things that your country manufactures." - Mike Rowe
Reply With Quote
  #11
Old 01-13-2010, 06:06 PM
|WYG|SS's Avatar
|WYG|SS |WYG|SS is offline
Senior User

Join Date: Sep 2009
Posts: 379
|WYG|SS is starting off with a positive reputation.
well its not cracked its just one piece cause it is a WARN after market.
i didnt even use the torch so yeah just had it just incase :P
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________
1993 F150 4.9l 5spd 4x4, 128,000 miles.
NEW!! 1986 Bronco 4.9l 4spd Granny 4x4
Reply With Quote
  #12
Old 01-13-2010, 06:18 PM
andym's Avatar
andym andym is offline
Post Fiend

Join Date: Mar 2002
Location: Sacramento, CA
Posts: 16,489
andym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputationandym has a superb reputation
Glad you got it out. It's not supposed to get rusty in there.
__________________
Andy

2000 Excursion Limited 7.3L 4x4

"If you want to live in a country that manufactures things, you need to buy things that your country manufactures." - Mike Rowe
Reply With Quote
  #13
Old 01-13-2010, 07:03 PM
|WYG|SS's Avatar
|WYG|SS |WYG|SS is offline
Senior User

Join Date: Sep 2009
Posts: 379
|WYG|SS is starting off with a positive reputation.
yeah i know the o-ring on the locker went bad. got one coming in tomorrow to see if it fits. now when i put the nuts back on over the bearing what do i tighten them down to?
__________________
1993 F150 4.9l 5spd 4x4, 128,000 miles.
NEW!! 1986 Bronco 4.9l 4spd Granny 4x4
Reply With Quote
  #14
Old 11-20-2010, 01:13 AM
offroad95 offroad95 is offline
New User

Join Date: Nov 2010
Location: n charleston
Posts: 17
offroad95 is starting off with a positive reputation.
I just want to say thanks for the help myself. I've owned several 4x4s and 2wds but generaly on the 4x4s didn't get to keep them before going into the extents of this. I have a 95 f150 4x4 and wheel bearings are going on it. Instead of the seal going bad I have missing screws. This is my first time breaking into the hud and locker on a 4x4 and this has been the most insightful forum I've found. So thanks again
Reply With Quote
  #15
Old 11-20-2010, 07:07 AM
SKS45 SKS45 is offline
Junior User

Join Date: Sep 2007
Posts: 78
SKS45 is starting off with a positive reputation.
wow, that is ugly. Hopefully it will cleanup okay.
Reply With Quote
