3G Alternator Install With Pictures

Okay, I wanted to upgrade my charging system, not because I need all the power, but mainly because I wanted to get rid of the dangerous spade terminal connections on the 2G alternator. I checked around and also learned that since a larger alternator is not straining as hard to put out the same amount of amperage as a smaller alternator might, it works less and lasts longer. I searched the internet and found plenty of 3G alternator upgrades documented, but I was confused, especially with the wiring (even though it is simple) and did not find one for our trucks.

A couple of people were interested in a write up, so here goes!

There are countless reasons to upgrade, and I am not here to sell you on them. If you are considering this upgrade, then you most likely have already researched the 3G alternator and where they come from. I got mine out of a Taurus (hint if you do not know where they come from).

If you want to do the upgrade, you will need beside the tools:

3G alternator
Mega Amp fuse
As long of a length of the alternator harness and battery wire from the back of the alternator out of the donor car you got the alternator from (it never hurts to have more and have to cut it, than not enough).

I completed this for about $30 in parts including the alternator.

There are a few different ways to go about the upgrade, and I do not know if mine is best, but it is simple and straight forward.

So lets start. *****DISCONNECT THE BATTERY***** The first and hardest part of this was getting out the old alternator. You can see why:

Click the image to open in full size.

Click the image to open in full size.

I ended up having to take the old one out from the bottom (you can also see the spade connector from the factory). VERY IMPORTANT - LAY THE OLD WIRING HARNESS ASIDE AND DO NOT DISCONNECT IT FROM THE TRUCK. Tape up the exposed ends and wire tie it safely out of the way. The wires are still HOT.

Click the image to open in full size.

Here is your 3G alternator. You will need to tap the threaded hole to fit a 3/8" bolt.

Click the image to open in full size.

Here is the old alternator next to the new one. I have already removed the pulley off the new one and am going to put on the V-belt pulley.

Click the image to open in full size.

Now here is the new one with the V-belt pulley on it. It will need a spacer under the pulley to keep it from rubbing the case. I used the washer that had been behind the retaining nut from the old alternator as the spacer. I slipped it over the shaft and then the pulley, and lastly the nut.

Click the image to open in full size.

Now onto the wiring. Do not let it intimidate you. You have 3 wires, "A,S, and I" coming out of the voltage regulator. Starting with "A" (the yellow wire), it only needs an eyelet on it and then loop it to the battery post of the alternator. Next wire is "S" (the white wire). It comes out of the connector and the other end plugs into the remaining terminal of the alternator. *This is already done by the factory as can be seen when you take the plastic wiring loom off the harness.* Last wire is the "I" (the green with red stripe wire). You will need to cut the green with red stripe wire in the truck's alternator wiring harness. You then solder this wire to the same color one in the truck's harness. One of the most confusing parts of the mod is now done.

Click the image to open in full size.

This is just a different angle of the wires.

Click the image to open in full size.

You can now bolt the alternator into the truck. There is a bushing in the upper bracket. Slide it out toward the front of the truck slightly to make it easier to put the alternator in. Once you have the alternator bolted in and belt tensioned, you are ready to finish making the connections.

Click the image to open in full size.

Click the image to open in full size.

Next is on to the charging wire. This comes off the rear lug of the alternator and goes to the starter solenoid. Solder a loop terminal to the Solenoid end. YOU WILL NEED CIRCUIT PROTECTION. I picked up a Mega Fuse and bolted it to the loop terminal I soldered on to the solenoid end. I simply then bolted the the other end of the Mega Fuse to the battery side of the starter solenoid. I know they make fuse holders which look better and may or may not be safer, but I could not find them, and I taped over the end not connected to the solenoid.

Click the image to open in full size.

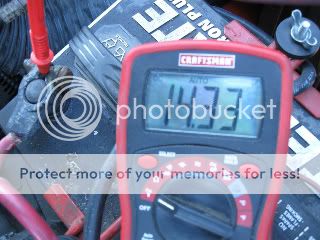

Reconnect the battery and try out the truck. If there is a problem, TURN IT OFF and re check the wiring and connections. Mine put out 14.33 volts at idle with everything on.

Good luck with this mod and please feel free to let me know if I forgot anything or should do anything different or if something could be done better.
__________________
"A man does what he must - in spite of personal consequences, in spite of obstacles and dangers and pressures - and that is the basis of all human morality."
Reply With Quote
  #2
Old 09-05-2009, 10:48 AM
ctubutis's Avatar
ctubutis ctubutis is offline
Moderator

Join Date: Nov 2007
Location: Denver Metro Area, CO
Posts: 15,820
ctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputationctubutis has a superb reputation
ctubutis ctubutis ctubutis
Good job with the write-up. Wish I could rep ya for that but it won't let me.

About the only thing that confused me at first was the white wire, the way it's
depicted in the first picture cuz the left side is cut off... Apparently, it merely loops
from the 3-conductor connector to a single-conductor connector back on itself?
That's how it appears in the next pic, anyway.

I've thought about doing this 3G stuff sometime but it won't be soon, too much
other stuff to take care of, first.
Reply With Quote
  #3
Old 09-05-2009, 11:08 AM
jeramy's Avatar
jeramy jeramy is offline
Senior User

Join Date: May 2007
Location: Arkoma,Oklahoma
Posts: 191
jeramy is starting off with a positive reputation.
great write up. only down side to the 3g is that over the counter those things are expensive.
Reply With Quote
  #4
Old 09-05-2009, 11:15 AM
bghnkinf250 bghnkinf250 is offline
Posting Guru

Join Date: May 2009
Location: Bay Area, Unfortunately
Posts: 1,459
bghnkinf250 is gaining momentum as a positive member of FTE.bghnkinf250 is gaining momentum as a positive member of FTE.
Thanks guys,

That white wire is sort of a pain to describe, but yeah, it basically just loops backto the alternator.

Price is a downside - unless you get it from the junkyard, I just looked for the best condition one I could find.
__________________
"A man does what he must - in spite of personal consequences, in spite of obstacles and dangers and pressures - and that is the basis of all human morality."
Reply With Quote
  #5
Old 09-05-2009, 01:16 PM
Jmeyer1990's Avatar
Jmeyer1990 Jmeyer1990 is offline
Posting Guru

Join Date: May 2009
Location: Omaha, NE
Posts: 1,968
Jmeyer1990 is gaining momentum as a positive member of FTE.Jmeyer1990 is gaining momentum as a positive member of FTE.
FNCHappyBanana Mini Schumi420
Thanks for the writeup!

and that's what I am going to do.
junkyard it.
except I am going to be a butthead about it.
I am going to find a 3g that is covered in a bit more grease then others. and if not possible, make it that way

less cash spent when I'm walking out the door! haha
__________________
-Josh
1998 F10 Extended Cab, 5.4
Nebraska Chapter Member
I'm Too absent-minded to forget things o.O
Reply With Quote
  #6
Old 09-05-2009, 01:49 PM
TheKirbyMan's Avatar
TheKirbyMan TheKirbyMan is offline
Posting Guru

Join Date: Aug 2009
Location: Mexia, TX
Posts: 2,264
TheKirbyMan has a good reputation on FTE.TheKirbyMan has a good reputation on FTE.
Awesome writeup!

How many amps does this 3G alternator put out compared to the factory one you replaced? I think my truck's alternator ('81) is 60 amps, and I'm curious as to whether all the factory wiring on my truck would like 100+ amps flowing through. lol
__________________
1981 F-150 Custom
| 302 | C6 | 9" 2.75 |

1995 Jeep Cherokee
| 4.0L | AW4 | One owner |

Reply With Quote
  #7
Old 09-05-2009, 04:43 PM
cadunkle's Avatar
cadunkle cadunkle is offline
Elder User

Join Date: Oct 2005
Location: NJ
Posts: 889
cadunkle is gaining momentum as a positive member of FTE.
Thanks for the info. Been considering this swap for a while. The regulator on my 45 amp jobbie is on the way out, voltage bounces around a bit. Comparing cost of a new factory unit to a junkyard 3g, may as well go 3g. Thanks.
Reply With Quote
  #8
Old 09-05-2009, 05:21 PM
bghnkinf250 bghnkinf250 is offline
Posting Guru

Join Date: May 2009
Location: Bay Area, Unfortunately
Posts: 1,459
bghnkinf250 is gaining momentum as a positive member of FTE.bghnkinf250 is gaining momentum as a positive member of FTE.
I am not sure on the factory output, I think it is around 60 or 65 (mine has manual windows and locks), the 3G's come in 95 and 130 amps. I forget how to visually tell, but I think it is along the lines of the 130 amp ones have 3 sets of 2 large holes in the front, where the 95 amp one has 3 sets of 4 holes in the front.

I am not sure how different it would be to convert an externally regulated alternator if at all.
__________________
"A man does what he must - in spite of personal consequences, in spite of obstacles and dangers and pressures - and that is the basis of all human morality."
Reply With Quote
  #9
Old 09-05-2009, 06:54 PM
TheKirbyMan's Avatar
TheKirbyMan TheKirbyMan is offline
Posting Guru

Join Date: Aug 2009
Location: Mexia, TX
Posts: 2,264
TheKirbyMan has a good reputation on FTE.TheKirbyMan has a good reputation on FTE.
Mine's got the regulator on the fender, beside the starter solenoid. I guess mine can't be converted without having to rewire a bunch of stuff?
__________________
1981 F-150 Custom
| 302 | C6 | 9" 2.75 |

1995 Jeep Cherokee
| 4.0L | AW4 | One owner |

Reply With Quote
  #10
Old 09-06-2009, 12:05 AM
bghnkinf250 bghnkinf250 is offline
Posting Guru

Join Date: May 2009
Location: Bay Area, Unfortunately
Posts: 1,459
bghnkinf250 is gaining momentum as a positive member of FTE.bghnkinf250 is gaining momentum as a positive member of FTE.
I thought I read that it is still relatively easy to do, you might just jump some wires? I am pretty sure it is still possible and easy.
__________________
"A man does what he must - in spite of personal consequences, in spite of obstacles and dangers and pressures - and that is the basis of all human morality."
Reply With Quote
  #11
Old 09-06-2009, 12:29 AM
bghnkinf250 bghnkinf250 is offline
Posting Guru

Join Date: May 2009
Location: Bay Area, Unfortunately
Posts: 1,459
bghnkinf250 is gaining momentum as a positive member of FTE.bghnkinf250 is gaining momentum as a positive member of FTE.
Time out!!!!!!!

Hold on for a minute folks. I just discovered something that may change this up a little! My choke stopped working - but I have been having minor carburetor problems for a while, even before I did the change. I pulled the wire and got no voltage...I did a little investigating, and found that the choke is run off the "S" wire on the alternator http://www.ford-trucks.com/forums/84...hoke-wire.html. This might slow down progress a little, I will work on it tomorrow and get back to you. I think I will hook it up to the positive side of the coil, that should have about the correct volatge. I will let you know and update the thread when I find out.
__________________
"A man does what he must - in spite of personal consequences, in spite of obstacles and dangers and pressures - and that is the basis of all human morality."
Reply With Quote
  #12
Old 09-06-2009, 07:26 AM
ArdWrknTrk's Avatar
ArdWrknTrk ArdWrknTrk is offline
<---Dog is my co-pilot

Join Date: Jan 2008
Location: EXTREME southwest CT
Posts: 19,242
ArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputation
Ford's harness sends 6-7 volts to the bimetal choke.
The Holley 45-258 12v electric choke element is available -Buy It Now-, on Ebay for under $15 to your door.
(not allowed to post a link, but the CarbDoc parts guy is in Long Island, NY)
You'll need to add a ground wire...


Click the image to open in full size.
You can tell the difference between 95 and 130A alternators by the number of holes between the webs of the case.
Looking at the photos above there are 2 holes where the 95A has 4.

To TheKirbyMan,
With the internal regulator of the 3G you just abandon the old one on the fender.
All the information you could possibly want is available on http://oldfuelinjection.com/

FWIW, you can purchase a very well made 'plug 'n play' harness for the 3G conversion from Ryan at the above site if the wiring is too intimidating for you.
He even sells the alternators new and tested with any clocking you need.
(No interest, just a satisfied customer)

Hope this helps.
__________________
Jim (AKA Princess Glitzhooter)
'87 F-250
460, 4V 0-80457s, Edelbrock Intake, Saginaw PS Pump, BW 1356 4x4, 4.10 10.25", 130A 3G Alt., PMGR starter, ZF-5, - Lil' Red
http://i246.photobucket.com/albums/gg117/donjamer/FTE%20Pics/blumax500-1-1.jpgFTE Fraternity of Blue Max
Reply With Quote
  #13
Old 09-06-2009, 11:26 AM
ArdWrknTrk's Avatar
ArdWrknTrk ArdWrknTrk is offline
<---Dog is my co-pilot

Join Date: Jan 2008
Location: EXTREME southwest CT
Posts: 19,242
ArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputationArdWrknTrk has a superb reputation
Quote:
Originally Posted by bghnkinf250 View Post
Hold on for a minute folks. I just discovered something that may change this up a little! My choke stopped working - but I have been having minor carburetor problems for a while, even before I did the change. I pulled the wire and got no voltage...I did a little investigating, and found that the choke is run off the "S" wire on the alternator http://www.ford-trucks.com/forums/84...hoke-wire.html. This might slow down progress a little, I will work on it tomorrow and get back to you. I think I will hook it up to the positive side of the coil, that should have about the correct volatge. I will let you know and update the thread when I find out.
Good idea! I agree the coil is also 'seeing' 7.5V in run.
I changed my element to 12V because I did not want to splice into my harness.
But in retrospect, you could also likely purchase a 1w resistor at Radioshack to drop the alternator output voltage from 12 to the 7.5 the Motorcraft element takes.
__________________
Jim (AKA Princess Glitzhooter)
'87 F-250
460, 4V 0-80457s, Edelbrock Intake, Saginaw PS Pump, BW 1356 4x4, 4.10 10.25", 130A 3G Alt., PMGR starter, ZF-5, - Lil' Red
http://i246.photobucket.com/albums/gg117/donjamer/FTE%20Pics/blumax500-1-1.jpgFTE Fraternity of Blue Max
Reply With Quote
  #14
Old 09-06-2009, 11:29 AM
bghnkinf250 bghnkinf250 is offline
Posting Guru

Join Date: May 2009
Location: Bay Area, Unfortunately
Posts: 1,459
bghnkinf250 is gaining momentum as a positive member of FTE.bghnkinf250 is gaining momentum as a positive member of FTE.
Resolved!

Okay, you can run a wire from the batt side of the coil to the choke and it should work just fine. Sorry for the confusion, the last one I did was on a fuel injected Mustang so we did not need to deal with a choke. Sorry again for the confusion, I did not want someone upset that they now had a non working choke. Carry on!
__________________
"A man does what he must - in spite of personal consequences, in spite of obstacles and dangers and pressures - and that is the basis of all human morality."
Reply With Quote
  #15
Old 09-06-2009, 11:38 AM
JimsRebel's Avatar
JimsRebel JimsRebel is offline
Posting Guru

Join Date: Mar 2008
Location: Washington
Posts: 1,290
JimsRebel has a good reputation on FTE.JimsRebel has a good reputation on FTE.JimsRebel has a good reputation on FTE.
Quote:
Originally Posted by bghnkinf250 View Post
Hold on for a minute folks. I just discovered something that may change this up a little! My choke stopped working - but I have been having minor carburetor problems for a while, even before I did the change. I pulled the wire and got no voltage...I did a little investigating, and found that the choke is run off the "S" wire on the alternator http://www.ford-trucks.com/forums/84...hoke-wire.html. This might slow down progress a little, I will work on it tomorrow and get back to you. I think I will hook it up to the positive side of the coil, that should have about the correct volatge. I will let you know and update the thread when I find out.

You will have full battery voltage at the coil unless you have a round coil with a duraspark 2 module on the fender wheel well.

You could add a ballast resistor in series to drop the voltage. Get the type that has 4 connections (70's dodge) as it will give you more choices to try.

The "S" output is off of one phase of the 3 phase winding and is half wave rectified, which will give you a half wave DC wave form.

Jim

PS, very good write up, thanks for posting it with photos
__________________
1986 F150 XLT Lariat 4x4 300 C6, 9 inch 3:50, 235-15 tires, sway bars, DS2 w/ GM 4 pin and no computer; 3G ALT swap, PMGR starter; 120,000 miles, 2nd owner
Reply With Quote
Old 09-06-2009, 11:38 AM



Reply

Similar Threads
Thread Thread Starter Forum Replies Last Post
HOWTO - Stop Me - Hydroboost Write Up bghnkinf250 '80-'86 HOWTO's 58 06-10-2014 01:03 AM
Stop Me - Hydroboost Write Up bghnkinf250 1980 - 1986 Bullnose F100, F150 & Larger F-Series Trucks 52 09-09-2013 05:07 PM
HOWTO - 3G Alternator Installation ctubutis '80-'86 HOWTO's 0 01-20-2011 10:09 PM
Vacuum hose and EGR routing bghnkinf250 1980 - 1986 Bullnose F100, F150 & Larger F-Series Trucks 9 02-20-2010 09:05 PM
Cool Me Off - Electric Fan Install bghnkinf250 1980 - 1986 Bullnose F100, F150 & Larger F-Series Trucks 4 02-04-2010 10:24 PM


Go Back   Ford Truck Enthusiasts Forums > Older, Classic & Antique Trucks > 1980 - 1986 Bullnose F100, F150 & Larger F-Series Trucks

Tags
2g, 3g, alternator, alternators, ford, fuse, install, location, mega, pics, taurus, truck, trucks, wire, wiring

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On

Forum Jump


Participate In The Forums

Create new posts and participate in discussions. It's free!

Sign Up »





All times are GMT -5. The time now is 02:26 AM.


Powered by vBulletin® Version 3.8.7 AC1
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Advertising - Terms of Use - Privacy Statement - Jobs
This forum is owned and operated by Internet Brands, Inc., a Delaware corporation. It is not authorized or endorsed by the Ford Motor Company and is not affiliated with the Ford Motor Company or its related companies in any way. Ford® is a registered trademark of the Ford Motor Company.

vbulletin Admin Backup
