60 amp alternature rpm rating question, building a 12v genset.

Ok got me a old lawnmower engine and the original 60 amper outa my 77 with voltage reg.

im trying to figure out the pulley ratio i need to use on my lawnmower engine but i dont know at what rpm the alternator is putting out full load. anyone have a chart for these old alts?


-gbm-
__________________
77.5 CS f250 460 4x4 4spd, pto winch, 4 inch lift, 35x12.50 grapplers, D60 front, D60 trac loc rear (frame off resto, driver)78 f250 ext cab 2wd lariete CS, 460 c6, full load, factory canopy, bought off original owners (driver)79 camper special f250 (parts) (R.I.P.)78 f250 4x4 (parts) (R.I.P.)77 f150 4x4(parts) (R.I.P.) 78 f250 (parts) (R.I.P)77 f150 302 (parts) (R.I.P.)79 f150 300 I6 2wd 4spd (bought new in 79 by father)
Reply With Quote
  #2
Old 11-08-2007, 02:34 PM
Mil1ion Mil1ion is offline
New User

Join Date: Jan 2008
Posts: 0
Mil1ion is starting off with a positive reputation.
Well nornally the VR doesn't kick in until about 850 rpm to tell the alt to Pump up the Jam.
Reply With Quote
  #3
Old 11-08-2007, 02:42 PM
Blindman Blindman is offline
New User

Join Date: Oct 2006
Posts: 17
Blindman is starting off with a positive reputation.
65amp ford alternators run at maximum output at from 2000 to 2500 engine rpm. You'll need to know the size of the harmonic balancer pulley on that 77 you took it off of
Reply With Quote
  #4
Old 11-08-2007, 03:12 PM
gingerbreadmaniac gingerbreadmaniac is offline
Senior User

Join Date: Dec 2001
Location: b.c. canada
Posts: 445
gingerbreadmaniac is starting off with a positive reputation.
Quote:
Originally Posted by Blindman
65amp ford alternators run at maximum output at from 2000 to 2500 engine rpm. You'll need to know the size of the harmonic balancer pulley on that 77 you took it off of

thats what i needed to know, ill play it safe and go with 2500 rpm.

heres the math im using.

the engine pulley on the 77 is 8 inches and the alt pulley is 2 3/4 inches

so 8/2.75=2.9:1 ratio
so with the truck engine spinning at 2500 rpm that means the alt is spinning at 2500 x 2.9 =7250 rpm (this is what rpm where looking to spin the alt at)

i know my 3.5 horse briggs lawnmower engine is spinning at 2900 rpm full
throttle so i take 7250 rpm/2900=2.5;1 ratio (thats the ratio i want for the lawnmower engine pulley size)

so i have a 2.75 inch pulley on the alt allready if i stick with that i will need a 2.75x2.5=6.87 inch pulley (6.75 or 7 inch)

what i need to figure out now is are the automotive pulleys the same as industrial pulleys pitch wise and what mounts up to the lawnmower and alt. shopping i will go. ill get back to you later. ill post up pics as i go here.

-gbm-
__________________
77.5 CS f250 460 4x4 4spd, pto winch, 4 inch lift, 35x12.50 grapplers, D60 front, D60 trac loc rear (frame off resto, driver)78 f250 ext cab 2wd lariete CS, 460 c6, full load, factory canopy, bought off original owners (driver)79 camper special f250 (parts) (R.I.P.)78 f250 4x4 (parts) (R.I.P.)77 f150 4x4(parts) (R.I.P.) 78 f250 (parts) (R.I.P)77 f150 302 (parts) (R.I.P.)79 f150 300 I6 2wd 4spd (bought new in 79 by father)
Reply With Quote
  #5
Old 11-08-2007, 03:15 PM
Blindman Blindman is offline
New User

Join Date: Oct 2006
Posts: 17
Blindman is starting off with a positive reputation.
Glad I was helpful. Happy manufacturing!!
Reply With Quote
  #6
Old 11-08-2007, 11:56 PM
masterbeavis's Avatar
masterbeavis masterbeavis is offline
Postmaster

Join Date: Aug 2000
Location: Eldorado Ca. USA
Posts: 3,306
masterbeavis has a very good reputation on FTE.masterbeavis has a very good reputation on FTE.masterbeavis has a very good reputation on FTE.
I would use a large case version of that alternator, it puts out 100A. You can find them on mid 80's Taurus and Merc. Sables.
__________________
Tony
Quando omni flunkus moritati - when all else fails, play dead.

If I
or anyone else posts something useful, click the heart at the top right corner in that post.
Reply With Quote
  #7
Old 11-09-2007, 02:11 AM
gingerbreadmaniac gingerbreadmaniac is offline
Senior User

Join Date: Dec 2001
Location: b.c. canada
Posts: 445
gingerbreadmaniac is starting off with a positive reputation.
Quote:
Originally Posted by masterbeavis
I would use a large case version of that alternator, it puts out 100A. You can find them on mid 80's Taurus and Merc. Sables.


why?


-gbm-
__________________
77.5 CS f250 460 4x4 4spd, pto winch, 4 inch lift, 35x12.50 grapplers, D60 front, D60 trac loc rear (frame off resto, driver)78 f250 ext cab 2wd lariete CS, 460 c6, full load, factory canopy, bought off original owners (driver)79 camper special f250 (parts) (R.I.P.)78 f250 4x4 (parts) (R.I.P.)77 f150 4x4(parts) (R.I.P.) 78 f250 (parts) (R.I.P)77 f150 302 (parts) (R.I.P.)79 f150 300 I6 2wd 4spd (bought new in 79 by father)
Reply With Quote
  #8
Old 11-09-2007, 07:36 AM
n9lhm n9lhm is offline
Senior User

Join Date: Apr 2005
Location: South Bend, IN
Posts: 436
n9lhm is starting off with a positive reputation.
One of our local small engine shops used to sell a jump-starter/battery charger that was a standard GM 55A internally-regulated alternator directly coupled to a 3HP horizontal shaft Briggs and Stratton engine. The Briggs engines normally run 3600 PRM full-load, so that is probably how fast they were turning that alternator. Seems about right if the automobile engine is turning 2000 RPM for max charge and the pulley ratio is probably nearly 2:1. They had a direct coupling with the alternator and engine together nose to nose. It was a cute little outfit, and was pretty safe since it wouldn't start putting out any voltage until connected to a battery with enough voltage to flash the field of the alternator and start it charging.
__________________
Brian

1995 Bronco XLT 5.0L

1976 F-250 I-6 4X4/Western snowplow

1978 BMW R-100S

Last edited by n9lhm; 11-09-2007 at 07:39 AM.
Reply With Quote
  #9
Old 11-09-2007, 09:02 AM
masterbeavis's Avatar
masterbeavis masterbeavis is offline
Postmaster

Join Date: Aug 2000
Location: Eldorado Ca. USA
Posts: 3,306
masterbeavis has a very good reputation on FTE.masterbeavis has a very good reputation on FTE.masterbeavis has a very good reputation on FTE.
Higher output at slower speeds, heavier duty, more surface area to dissipate heat. You will melt your current alternator if you try to pull more than 80% capacity out of it (45a ish). The large case you can get 75a out of safely.
__________________
Tony
Quando omni flunkus moritati - when all else fails, play dead.

If I
or anyone else posts something useful, click the heart at the top right corner in that post.
Reply With Quote
  #10
Old 11-09-2007, 12:12 PM
gingerbreadmaniac gingerbreadmaniac is offline
Senior User

Join Date: Dec 2001
Location: b.c. canada
Posts: 445
gingerbreadmaniac is starting off with a positive reputation.
Quote:
Originally Posted by masterbeavis
Higher output at slower speeds, heavier duty, more surface area to dissipate heat. You will melt your current alternator if you try to pull more than 80% capacity out of it (45a ish). The large case you can get 75a out of safely.

I dont follow what your trying to say to me here please explain further.



-gbm-
__________________
77.5 CS f250 460 4x4 4spd, pto winch, 4 inch lift, 35x12.50 grapplers, D60 front, D60 trac loc rear (frame off resto, driver)78 f250 ext cab 2wd lariete CS, 460 c6, full load, factory canopy, bought off original owners (driver)79 camper special f250 (parts) (R.I.P.)78 f250 4x4 (parts) (R.I.P.)77 f150 4x4(parts) (R.I.P.) 78 f250 (parts) (R.I.P)77 f150 302 (parts) (R.I.P.)79 f150 300 I6 2wd 4spd (bought new in 79 by father)
Reply With Quote
  #11
Old 11-09-2007, 12:19 PM
psquare7575's Avatar
psquare7575 psquare7575 is offline
Posting Guru

Join Date: Feb 2006
Location: MA
Posts: 1,333
psquare7575 is starting off with a positive reputation.
I've got one of these to go on soon..

My amp pulls 40 amps alone

http://rjminjectiontech.com/?p=6
__________________
78 Mercury Cougar XR7 523/c6/3.55:1
79 Ford F100 XLT 2WD 460/TKO500/3.25:1
93 Cavalier Z24 Clone
Reply With Quote
  #12
Old 11-09-2007, 09:54 PM
masterbeavis's Avatar
masterbeavis masterbeavis is offline
Postmaster

Join Date: Aug 2000
Location: Eldorado Ca. USA
Posts: 3,306
masterbeavis has a very good reputation on FTE.masterbeavis has a very good reputation on FTE.masterbeavis has a very good reputation on FTE.
There is sooo much info to weed thru to try and explain my reasoning. Ive stolen bits and pieces off of the internet, but could not find all I was lookng for. My brain hurts, so I cannot do any better.




An alternator typically takes about 1 HP (horse power) for every 25 amps of power generated. So, a 100 amp alternator will require about 4 HP at full output. Most alternators do not operate at full output for very long.

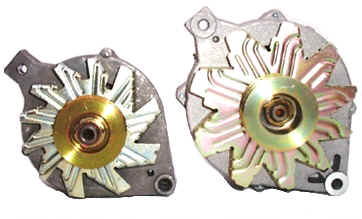

Ford Motorcraft 1G type Externally Regulated Small Case vs. 1G Large Case Alternator


Click the image to open in full size. Click the image to open in full size.

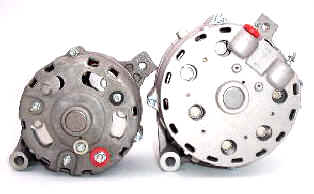

Small Case, Left. Large Case 1G, Right Small Case, Left. Large Case 1G, Right
