Woodruff Key...I lost it
09-25-2006, 12:49 PM
Posting Guru
Thread Starter
Join Date: Oct 2001
Location: Culpeper, Virginia
Posts: 1,777
Likes: 0
Received 0 Likes
on
0 Posts
Woodruff Key...I lost it
I'm a *******, I lost my woodruff key in the gravel.
I need a new one, so I went to TSC to try and eyeball one out.
Figures, they have a bunch of sizes.
Any input on what I should get?
I was thinking of getting a bunch and just seeing what fit.
Thanks,
Blair
09-25-2006, 03:30 PM
Join Date: Jul 2002
Location: Long Island USA
Posts: 42,561
That's funny, I still have on sitting in my desk organizer from a few years back when someone else asked the exact same question
I don't have my calipers or micrometer handy though ...
Just to make sure, it's the one on the crank for the damper, or the one on the crank for the timing chain gear?
And get that paint out of your mouth
09-26-2006, 07:58 AM
Posting Guru
Thread Starter
Join Date: Oct 2001
Location: Culpeper, Virginia
Posts: 1,777
Likes: 0
Received 0 Likes
on
0 Posts
Hey Krewat,
It's the one for the dampner. How frustrating to drop something like that. Next time I'm putting my motor together in the basement.
Thanks,
Blair
09-26-2006, 09:11 AM
Join Date: Jul 2002
Location: Long Island USA
Posts: 42,561
It's 1/4" square by 3/4" long.
More accurately:
.2515" square, .751" long.
It's an interference fit, hence the extra .0015 on the width. The length can be just plain .75 (or 3/4) inches.
09-26-2006, 09:54 AM
Join Date: Nov 2004
Location: Northern CA
Posts: 1,856
Good idea....until you have to get the motor OUT of the basement. Doh!
Quote:
Originally Posted by 78bigunns
Next time I'm putting my motor together in the basement.
09-26-2006, 12:49 PM
Join Date: Aug 2005
Location: Gadsden Purchase
Posts: 2,760
Likes: 0
You couldn't even find it with a strong magnet? :/
09-26-2006, 01:17 PM
Posting Guru
Thread Starter
Join Date: Oct 2001
Location: Culpeper, Virginia
Posts: 1,777
Likes: 0
Received 0 Likes
on
0 Posts
thanks for the info on the key. I'm getting one tonight. Gotta get my 352 up and running.
Bryce, it's a walkout...........
Alvin, I looked and looked, even had my bolt getter thing on a stick, magentic style.
No luck, it musta bounced.
09-26-2006, 01:19 PM
Join Date: Aug 2004
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
09-26-2006, 01:53 PM
Join Date: Jul 2002
Location: Long Island USA
Posts: 42,561

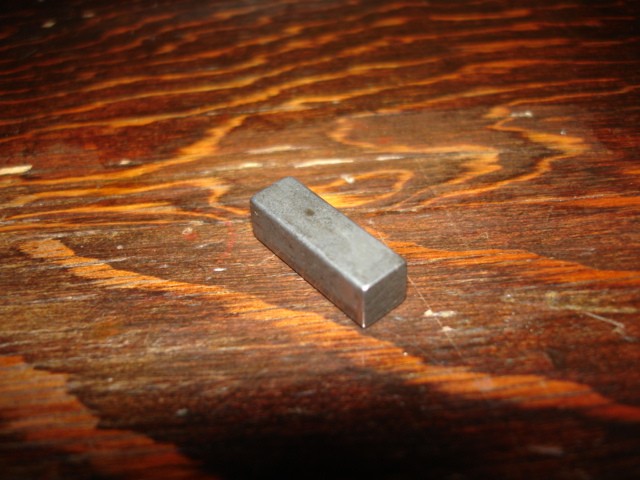

This:
It fits into the crankshaft, and the damper has a matching groove. Keeps the damper from spinning on the crank shaft
09-26-2006, 02:06 PM
Join Date: Aug 2004
Posts: 382
Likes: 0
Received 0 Likes
on
0 Posts
cool, thanks for the lesson.
09-28-2006, 04:02 PM
Join Date: Aug 2005
Location: Gadsden Purchase
Posts: 2,760
Likes: 0
Quote:
Originally Posted by 77fordguy
cool, thanks for the lesson. :D
Yeah, same here I guess. :)
I always thought of them as being a half moon shape and the square ones (like the one pictured) being a "key".
Alvin in AZ
09-29-2006, 12:41 PM
Join Date: Apr 2003
Location: Houston
Posts: 1,766
Could it have fallen into the timing cover while you were pushing the balancer on? Can't remember off the top of my head if there's room for it to get past the seal.
09-30-2006, 08:53 AM
Posting Guru
Thread Starter
Join Date: Oct 2001
Location: Culpeper, Virginia
Posts: 1,777
Likes: 0
Received 0 Likes
on
0 Posts
No I don't think so.
I think I need a half moon one at that. I bought a square one like in the pic, and just test fitted it in the end of the groove.
But it appears that the notch on the crank stem is a half moon and not rectangular.
Thanks,
Blair
09-30-2006, 10:38 AM
Join Date: Oct 2005
Location: Mddl A MexCans
Posts: 3,782
Likes: 0
well I was just about to say I had an extra, went to pickyashiat yesterday just for that paid 20 for a balancer so I wasnt stealing and got back to find the original right were it was all along LOL... well extra stuff aint a bad thing on these old trucks hahhaha
09-30-2006, 11:50 AM
Join Date: Jul 2002
Location: Long Island USA
Posts: 42,561
Quote:
Originally Posted by 78bigunns
No I don't think so.
I think I need a half moon one at that. I bought a square one like in the pic, and just test fitted it in the end of the groove.
But it appears that the notch on the crank stem is a half moon and not rectangular.
Thanks,
Blair
Crap, did I pick the wrong one?
I have to go dig out a crank now... oh well
