Help Identify this Plug
#1
Help Identify this Plug

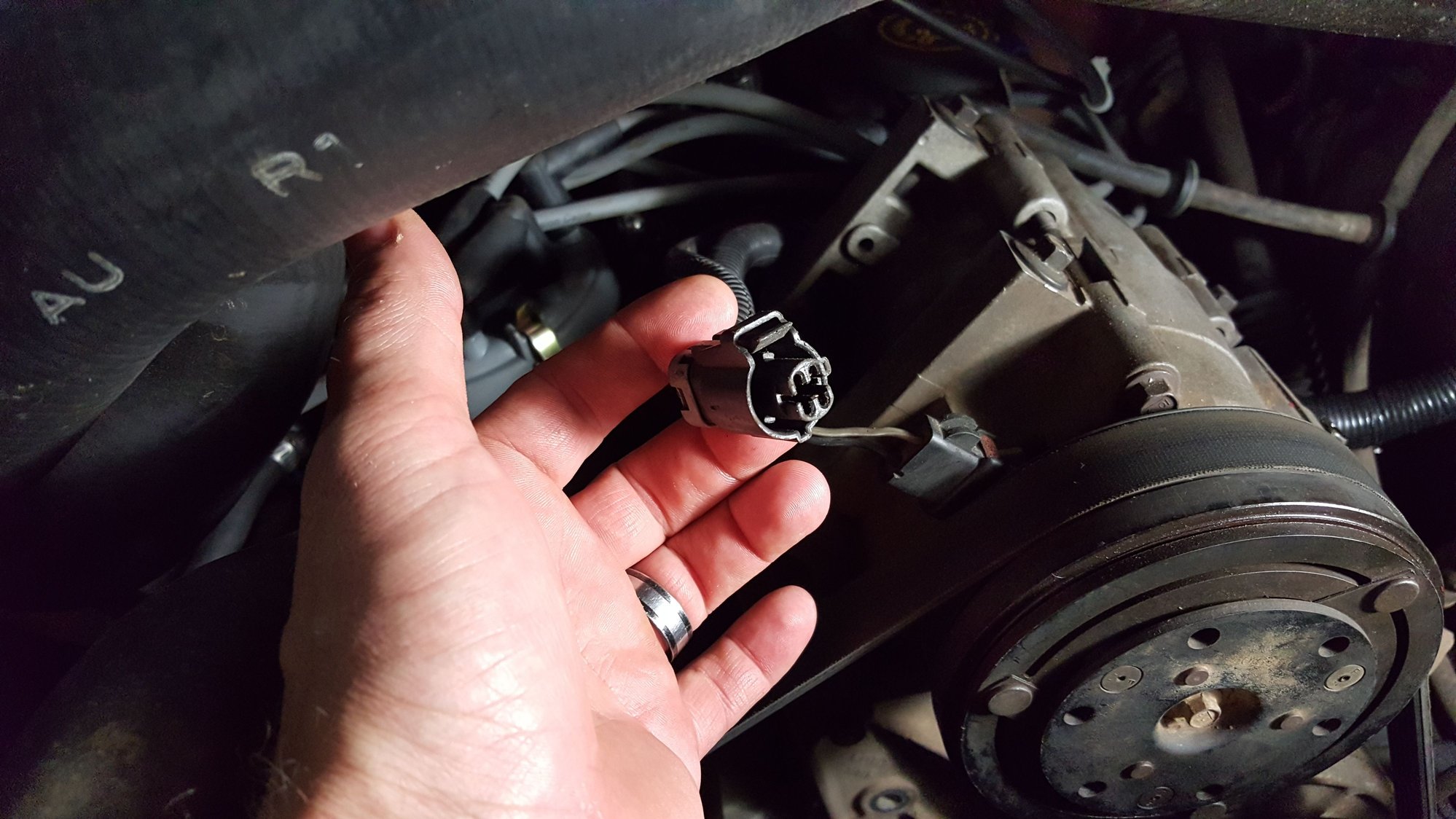

This is in the main engine harness. I just did a 5.0 to 5.8 swap and I have this plug left over with nowhere to put it. The original harness from the 5.0 was pretty chewed up and I got this harness for free and at first glance everything looked identical except much cleaner and everything plugged in fine but I have this plug left over so I am guessing either I am just not seeing where it goes or the original 5.8L it came from had something mine does not have. It is splitting out if the loom right with the A/C plug and is long enough to either go up to the intake tubes like maybe a air sensor of some type which my vehicle is not equipped with or it is long enough to reach several areas. What is it and is it hurting anything to not have it plugged in? Oh and supposedly this harness came from the same vehicle the computer came from both are for a 5.8L with E4OD. The engine starts but dies after a couple of minutes. Dies abruptly like the computer shut if off. SO hunting around for issues. Oh and its a two wire plug.
#2
Looking at a 1992 wiring diagram they show a power steering pressure switch in that vicinity but that would mean my original harness should have had that plug right? And it does not. This is the absolutely only difference in the two harnesses I can find. If I dont need it I just need to know what to do with it. Tape it off or put a jumper wire on it or what? I am trying to find a picture of someone elses truck online with this plug but not having much luck.
#3
Ok.. I think I have narrowed it down to a Incoming Air Temp Sensor which means the harness is newer than the computer because the computer is a speed density computer. Is it ok to just leave it hanging? That also makes me wonder what other issues I may have now. Do I need to pull this harness back off the engine and save it for when i switch to mass air?
#4
#7
Join Date: Feb 2002
Location: Greater Austin, Texas
Posts: 7,300
Likes: 0
Received 355 Likes
on
285 Posts
Trending Topics
#8
#9
The IAT/ACT sensor was located in the lower intake manifold until ~1994. Ford moved it to the air filter box.
Old location:
Item marked as ACT
Closed-up:
Near intake manifold Runner # 6
If you have a MAF truck the IAT/ACT is located at the air box. Try looking on the side facing the firewall.
Old location:
Item marked as ACT
Closed-up:
Near intake manifold Runner # 6
If you have a MAF truck the IAT/ACT is located at the air box. Try looking on the side facing the firewall.
#12
#13
The IAT/ACT sensor was located in the lower intake manifold until ~1994. Ford moved it to the air filter box.
Old location:
Item marked as ACT
Closed-up:
Near intake manifold Runner # 6
If you have a MAF truck the IAT/ACT is located at the air box. Try looking on the side facing the firewall.
Old location:
Item marked as ACT
Closed-up:
Near intake manifold Runner # 6
If you have a MAF truck the IAT/ACT is located at the air box. Try looking on the side facing the firewall.
#15
Yes I did look at the diagram and I dont have that plug on my power steering pump, so if that is what the plug is for I am missing that feature on this power steering pump. Not sure I have ever seen that but if that is what its for then thats easily fixed with a trip to the salvage, However it still begs the question as to whether this harness is newer than my truck and if it is for a mass air truck in which case are my injectors now wired wrong? Or is anything else wired up wrong that may **** off the truck. When it was started the gauges were acting crazy, The Tack stayed above 2K rpm when the engine clearly wasnt that high, the volt meter was jumping all over, the oil pressure stayed at the bottom (which I may have a bad sender, i had to use a old one I found laying around the garage) and the engine seemed sluggish, But my timing light would not work so I need to get a working one and set the timing correct. I did it by ear. Also the truck would just shut off abruptly after it ran for a couple of minutes. Not a stumble and die. It just cut off like you turned off the key but would re start after.
