Forrest's major mods round 2

Round 1 has pretty much occurred in the last 1.5 years and is reflected in my sig. Onto round 2 which consists of: new PIS 175/80 injectors, 910 comp springs shimmed .030, new valve seals, fluidampr, M208 LPOP, confirming if the injector cups are sealed, military battery terminal mod, and new Gearhead tunes!

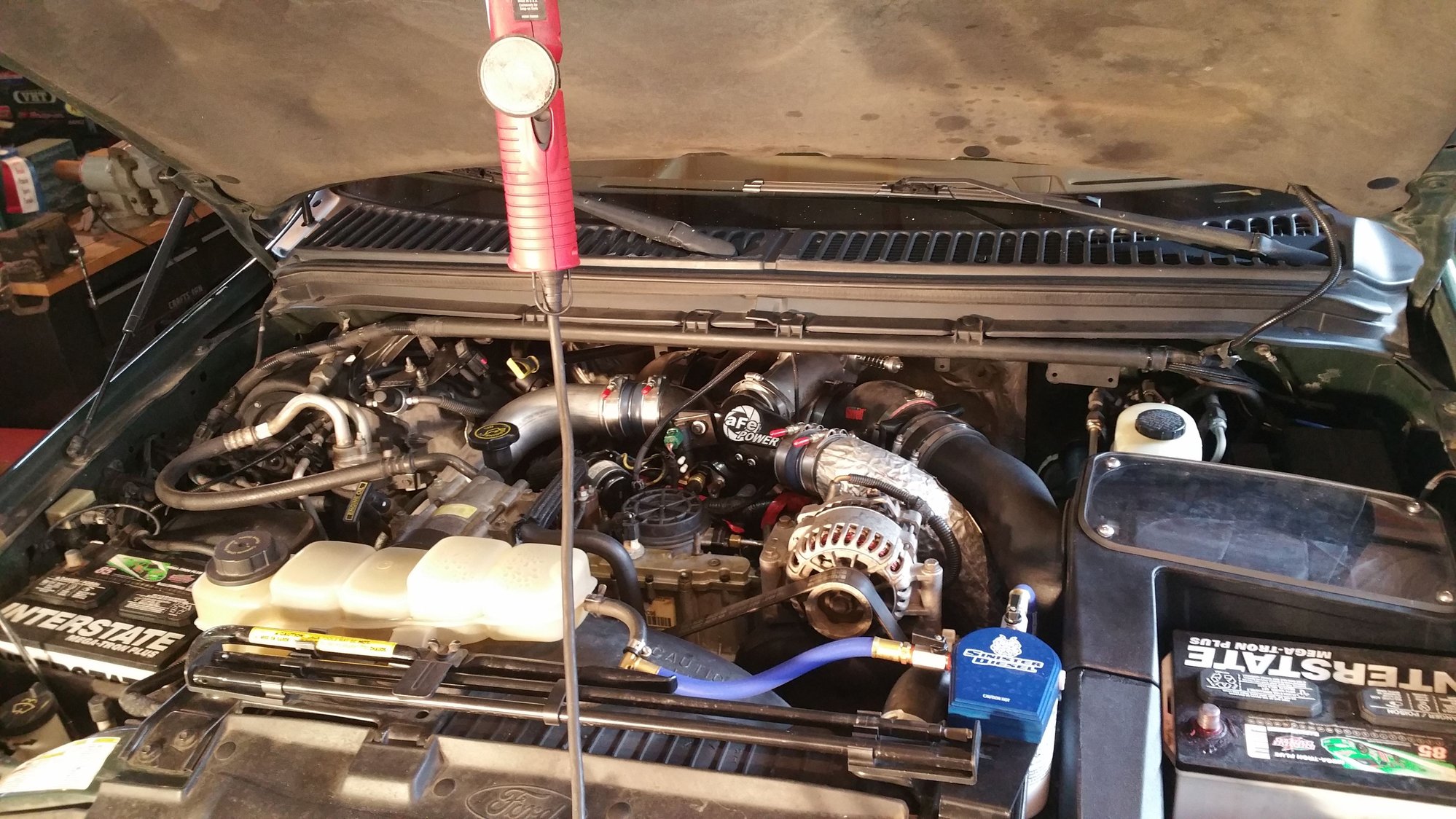

Starting point:

Click the image to open in full size.


Click the image to open in full size.

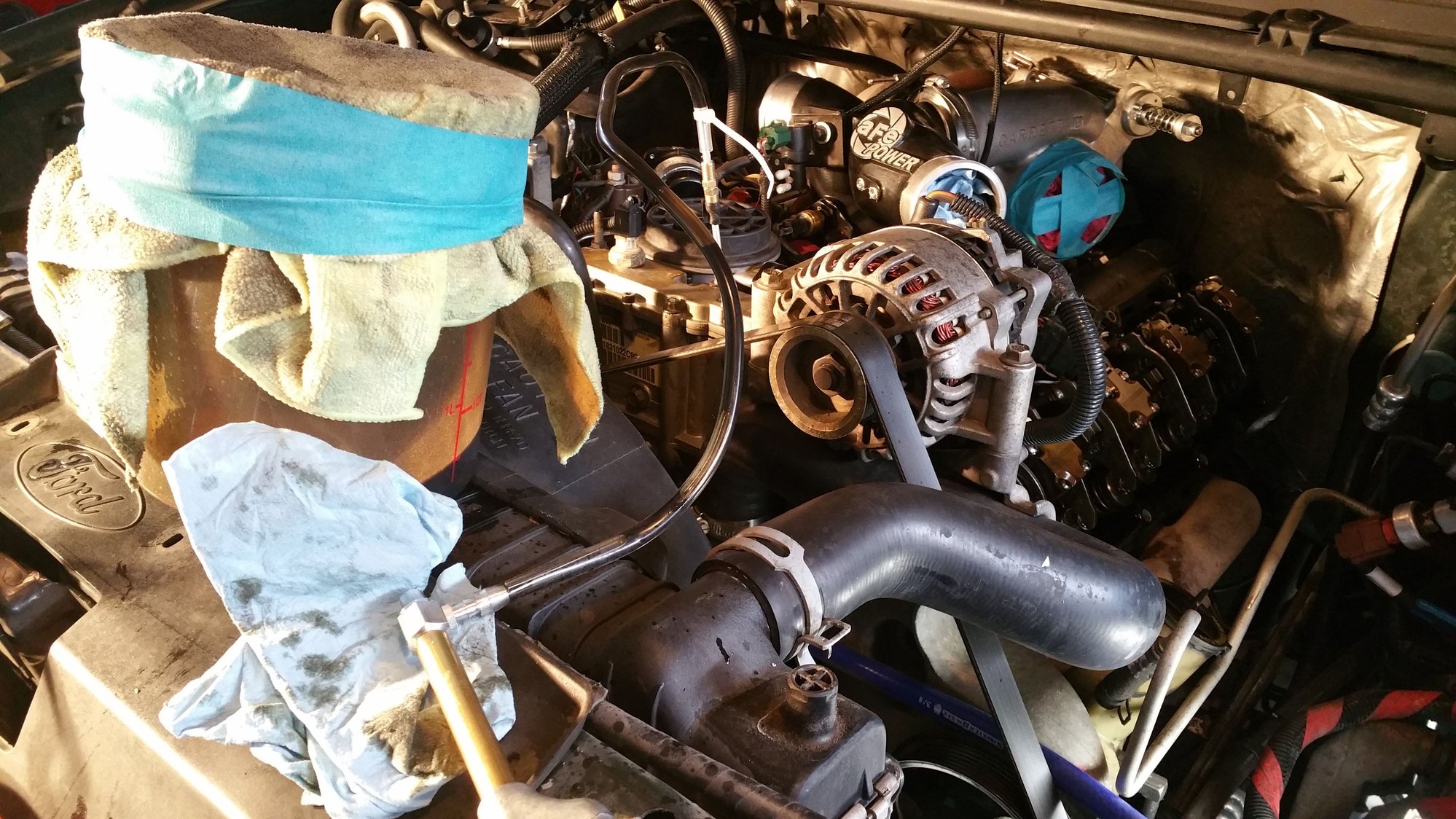

Evacuating the HPOP with an air powered siphon gun. Used the small bucket with the rags on top to seal off the air nozzle through a small cut I made in the rags. Worked well. Took some time but much faster and easier than the mityvac I started to use. I had drained the coolant and fuel bowl by this time.


Click the image to open in full size.

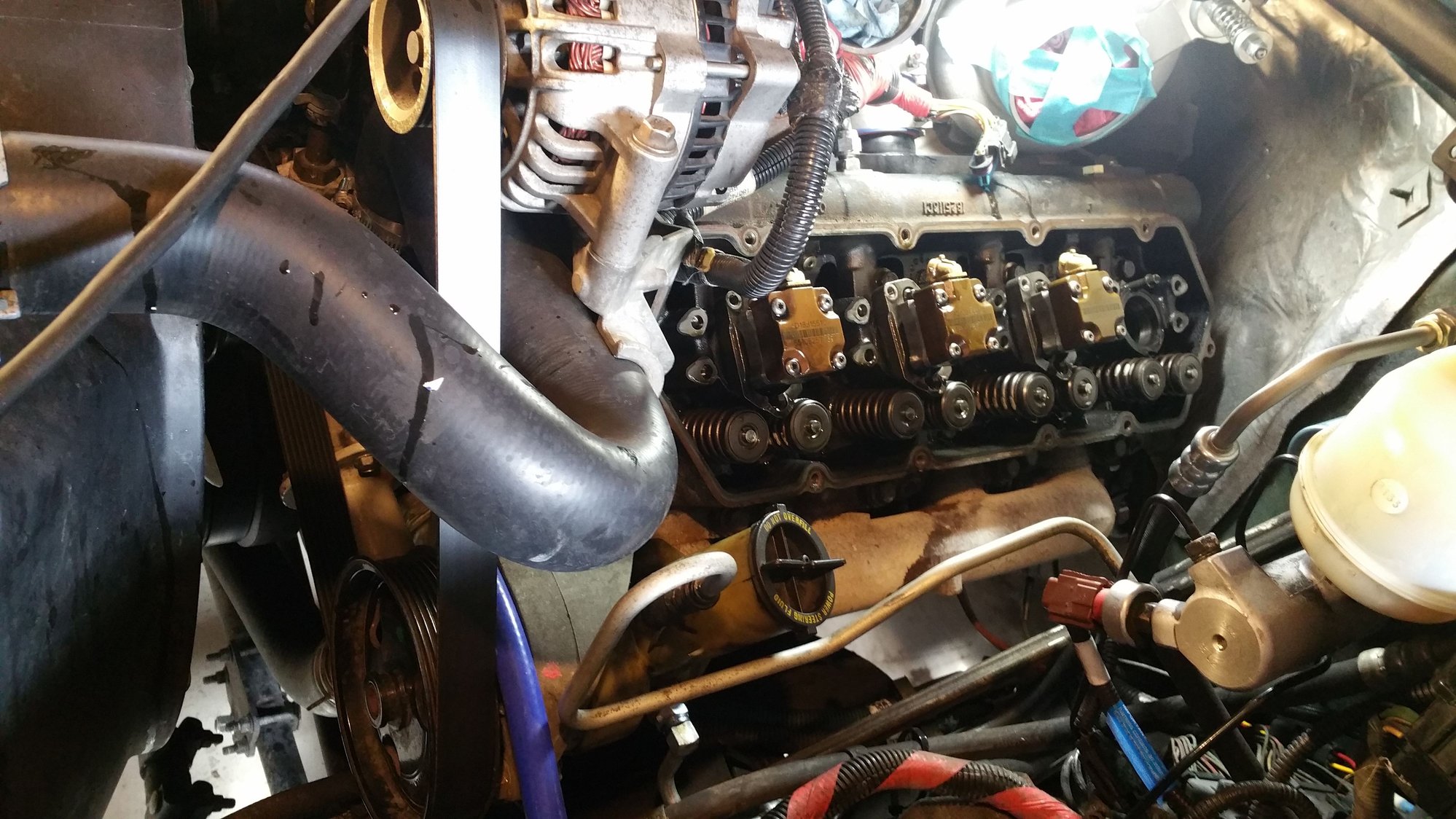

Pulled injectors #7/8 to let the fluid drain into those cylinders. Removed all the glow plugs, rocker arms, and pushrods while waiting.


Click the image to open in full size.

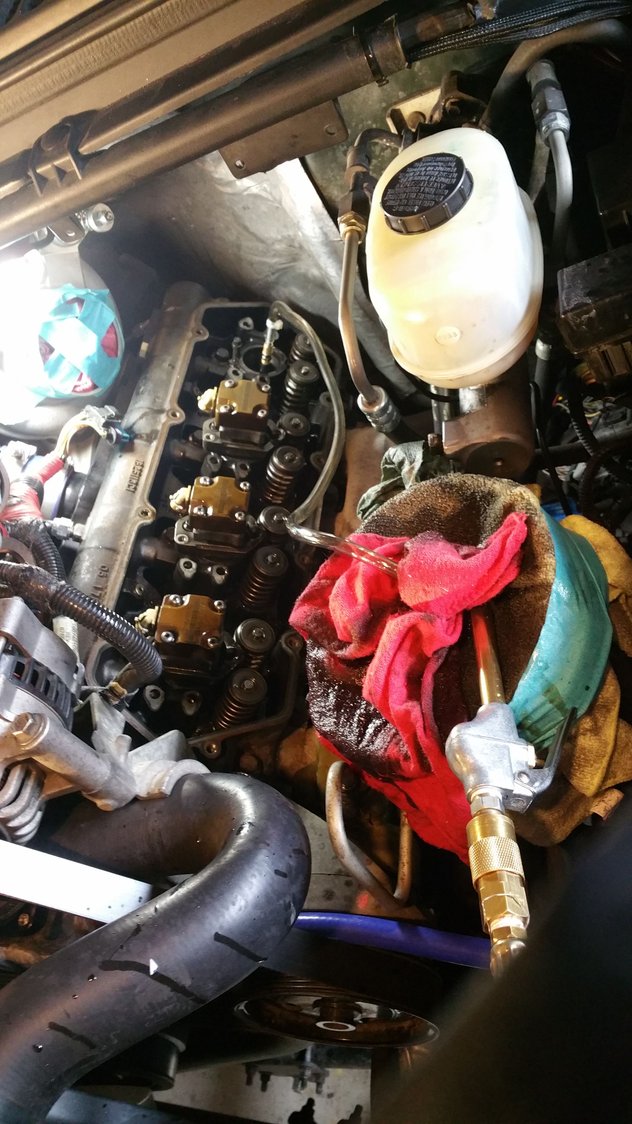

Evacuating #8 and then 7. Quite a bit of fluid.


Click the image to open in full size.

There the injector cores be. O rings were in reasonable condition, no brittle or broken ones.


Click the image to open in full size.

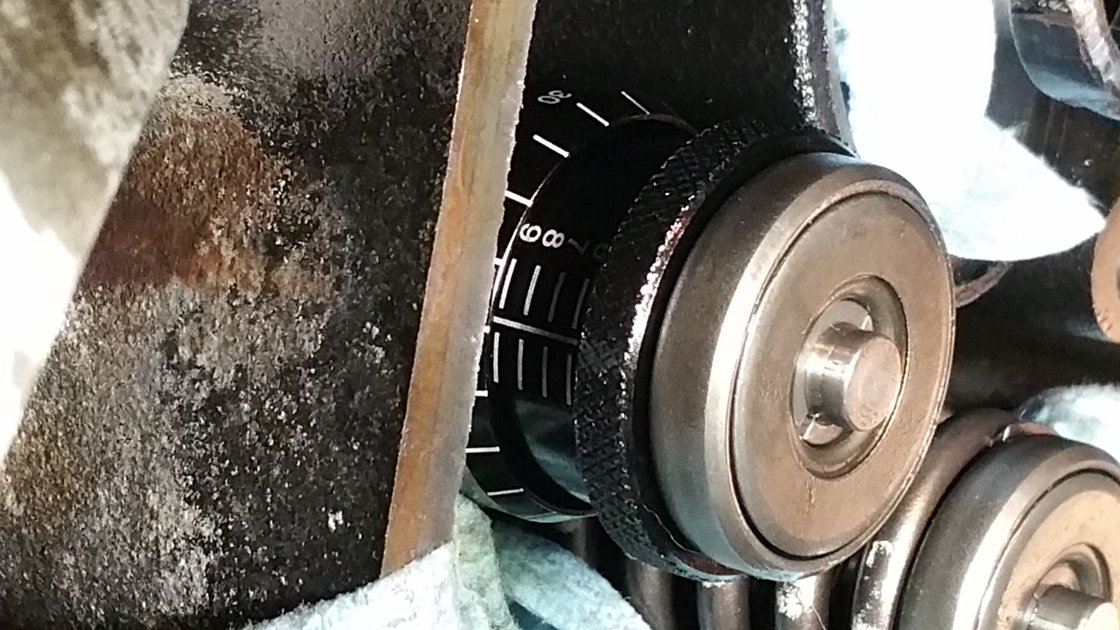

Two injectors had these marks. What do they indicate?


Click the image to open in full size.

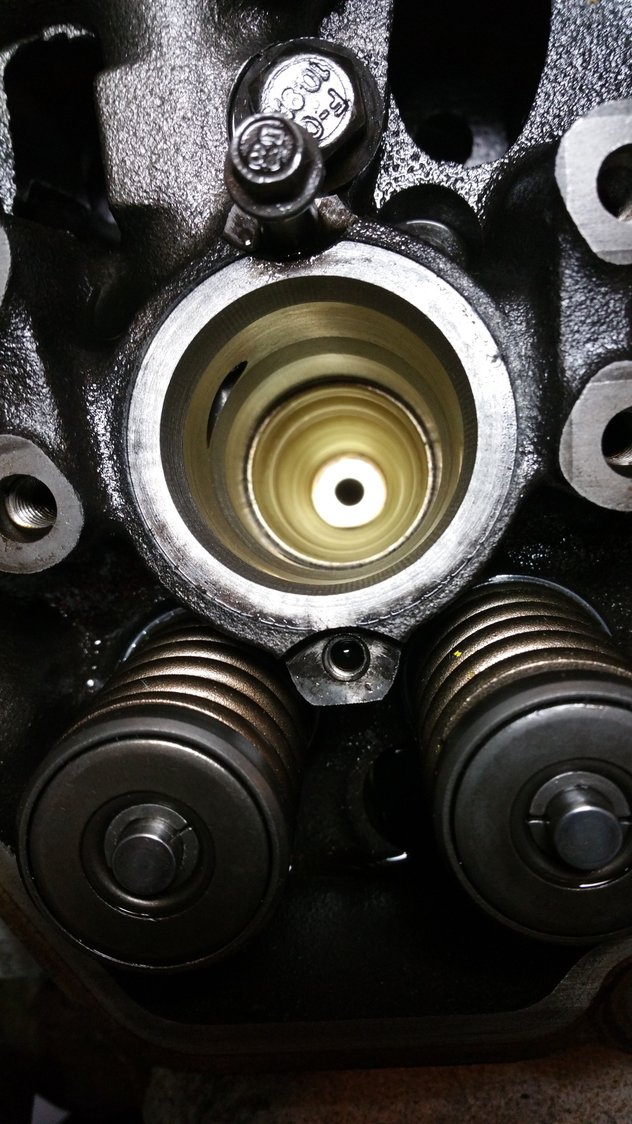

Starting to look a little lonely in there.


Click the image to open in full size.

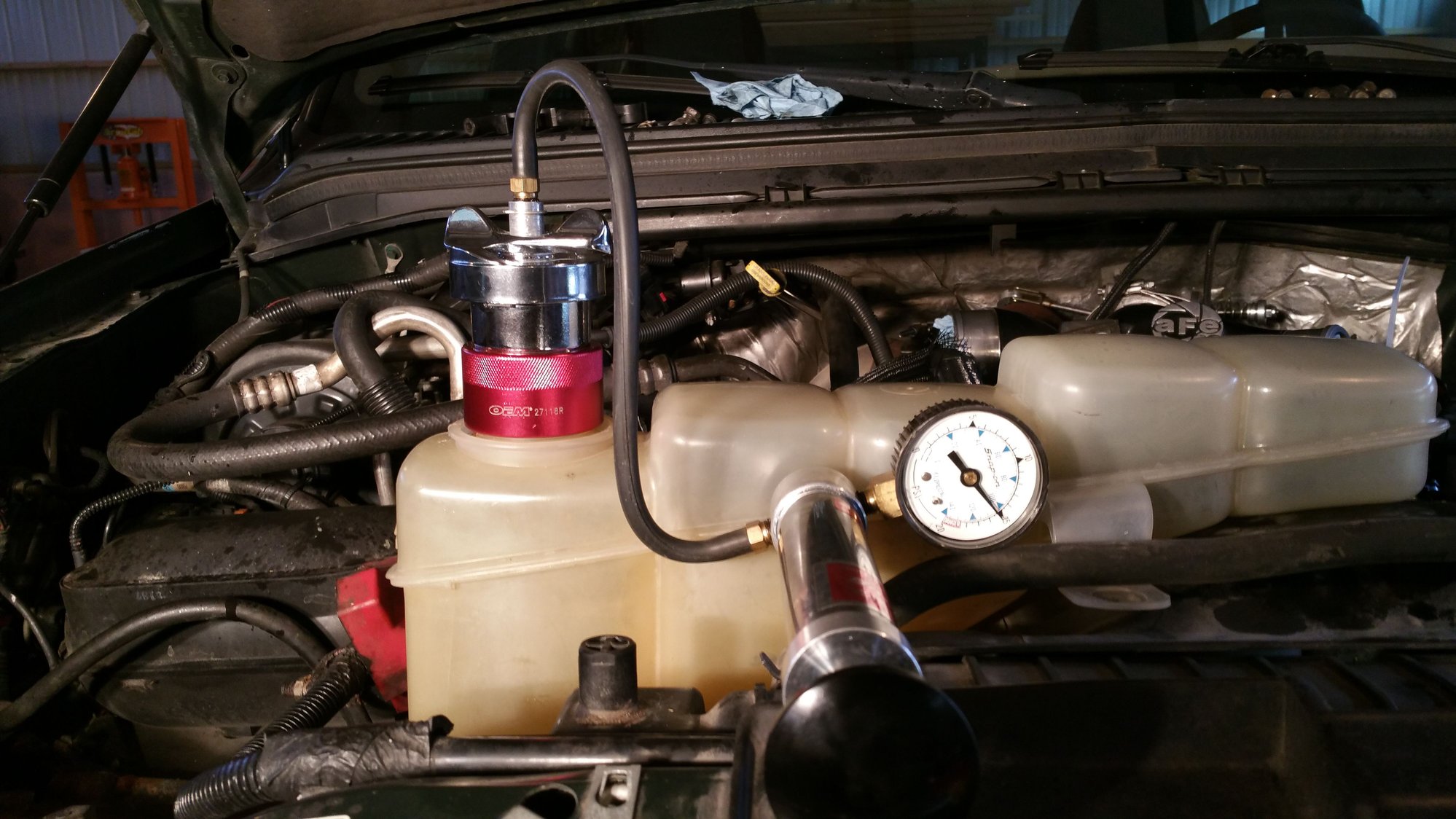

Pressurized the cooling system to 15psi for an hour while I performed a quick clean on the cups and sprayed them with silicone looking for leaks. Unfortunately, my flip camera decided to not work so, I could only perform a visual on cylinders 1 through 4. The system held 15psi for an hour with no loss in pressure. I then decreased to 11psi and it held for 3 more hours. Is this sufficient to say the cups are not leaking?
__________________
L99 CC SWB, 7.3, 4WD, 2.5" lift, 285/75 16, 3.73, Auto.

38R, PIS 175/80, T500, RR billet plenums, Fluidampr, Melling LPOP, 910 springs, AFE spyder, S&B Intake kit, PHP Hydra, CNC HPOP & Quad fuel feed, 6.0 cooler, Built trans & Billet converter, Warn hubs, TrueTrac, PMF traction bars, Flo-Pro 4" exhaust, H&H tank mod.
.
Reply With Quote
  #2
Old 02-20-2016, 09:33 PM
SRBF150's Avatar
SRBF150 SRBF150 is offline
Elder User

Join Date: Nov 2010
Location: Vancouver, WA.
Posts: 501
SRBF150 is gaining momentum as a positive member of FTE.SRBF150 is gaining momentum as a positive member of FTE.
Click the image to open in full size.

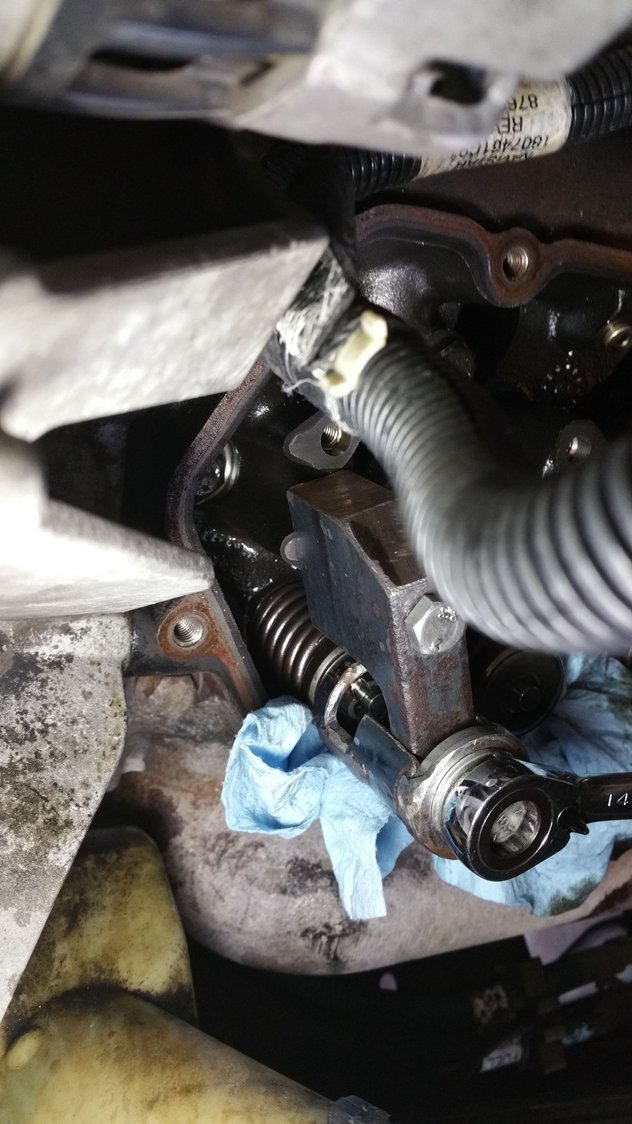

Starting the work on the first valve spring.


Click the image to open in full size.

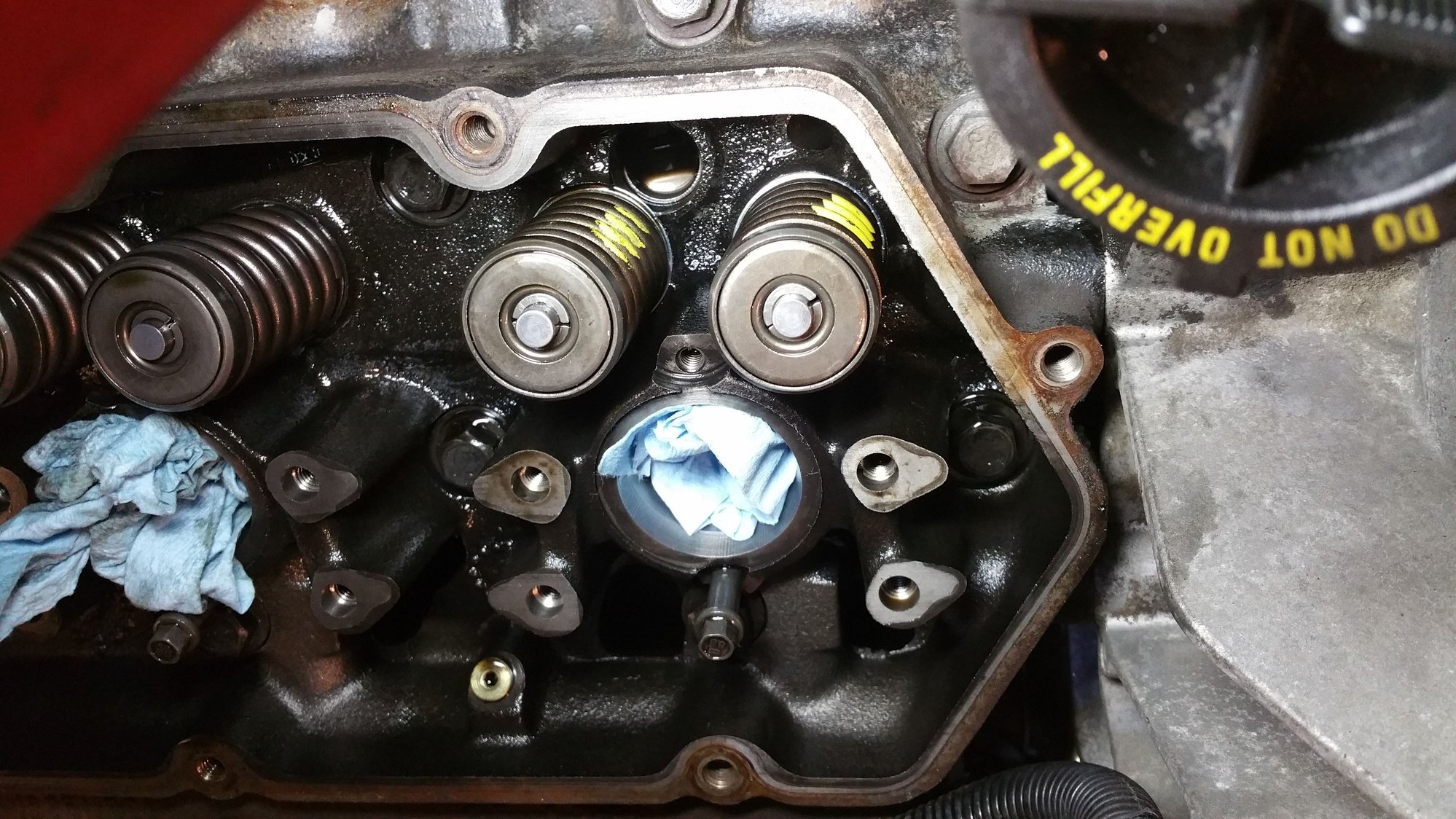

Different shot.


Click the image to open in full size.

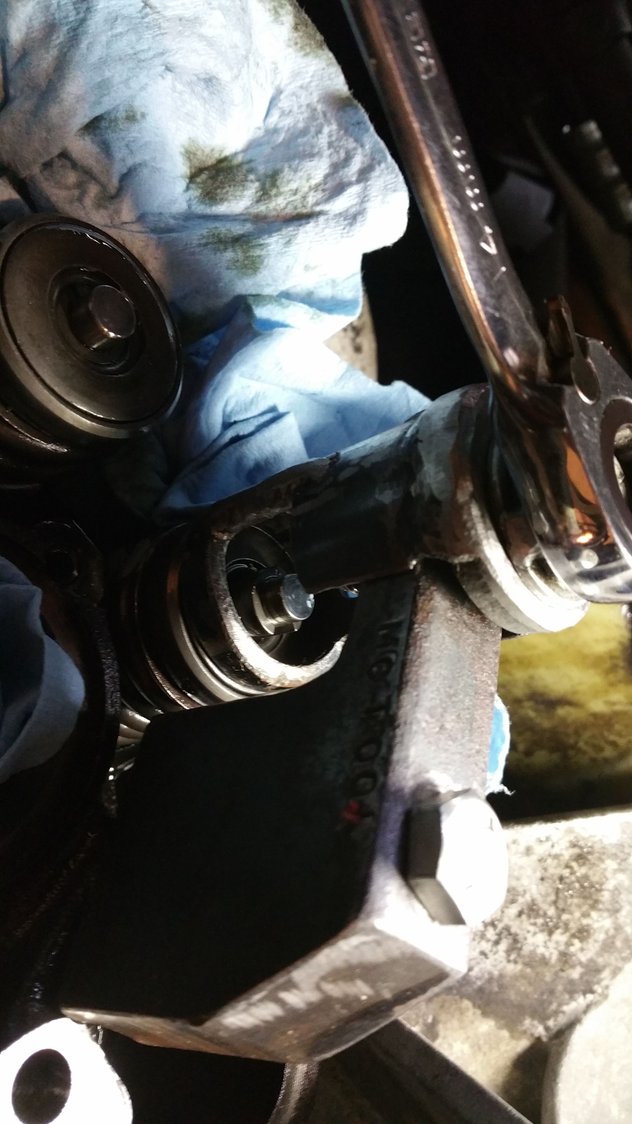

Comp 910 spring wire diameter. Compressing the springs by hand confirmed the Comp springs are substantially stiffer. Extraordinary scientific method.
