  #1
Old 07-23-2014, 09:54 PM
Hard Workin Hard Workin is offline
Junior User

Join Date: Jun 2014
Posts: 78
Hard Workin is gaining momentum as a positive member of FTE.
Wicked Wheelz Install

Well I finally got time scheduled with my buddy to do the install and here is how it went.

Warning if you disconnect the fuel lines for ease of access (not necessary) don't be a dumb-*** like me and forget to purge the lines. You will vapor lock the engine and be sad as you watch it get towed to the dealership......Not that I know or anything....

You will need various hand tools, an 8mm, 12 point socket, air chisel. I removed my tire to make it easier to remove the last 2 bolts. You can do it with the tire on it is just very tight.

Remove the air box and all coolant line hoses. Have some rubber glove finger sections handy as several points will leak coolant like there is no tomorrow.

Remove the upper intake manifold by removing all the 8mm bolts. There are several that are difficult to get to and almost impossible without a universal joint. To get to the last few bolts on the drivers side disconnect the dip sticks and push them to the side. Once all the bolts are out and the MAS is disconnected carefully remove the intake. It will come out at an weird angle towards the drivers side.

Once it is out set it on a clean surface and remove the exhaust pipe from the engine disconnecting the wiring harness below the forward portion of the intake. You will then disconnect the oil evap line and wire from the intake on the drivers side. Once that is complete loosen the boots from the intake and turbo. Once it is disconnected unbolt the manifold from the engine (3) 10mm bolts. Carefully lift out. This will expose the turbo to work on.

For the turbo remove the oil line that is on the passenger's side by removing the retaining clips and then pull the hose off. Do the same on the driver's side for the coolant line. Be ready to plug the coolant line so you don't flood the valley. With the lines out of the way. I removed the fuel lines to allow for ease of access when it came time to pull the turbo out of the engine. Remove the 3 bolts from in front of the turbo. Remove the 4 bolts holding the turbo in place and remove the upper bolt for the exhaust inlet pipe. (I put a temp probe on the pipe to operate a turbo timer). Once you have the top bolt removed, take off the tire (very tight fit if you don't), remove the wheel well insert, and the last two bolts for the pipe. Once it is all disconnected loosen the v-band clamp on the turbo housing and tap the cast iron parts with the air chisel to break it free. Once it is free lift out.

With the turbo out of the engine, remove the cover plate with the 8mm 12 point socket. Once the cover is off carefully clamp the impeller shaft with vice grips. You don't need a lot of force as the wheel comes off easily. It is reveres threaded. Once the old wheel is off just spin the new one on and reassemble everything.

If you disconnected the fuel lines PURGE THE SYSTEM before starting or you get to see how awesome it sounds for about 2-4 seconds.

Once I get my truck backClick the image to open in full size.

Starting


Click the image to open in full size.

Removal of the air intake


Click the image to open in full size.

Removal of the upper intake manifold


Click the image to open in full size.

Removal of the lower intake manifold


Click the image to open in full size.

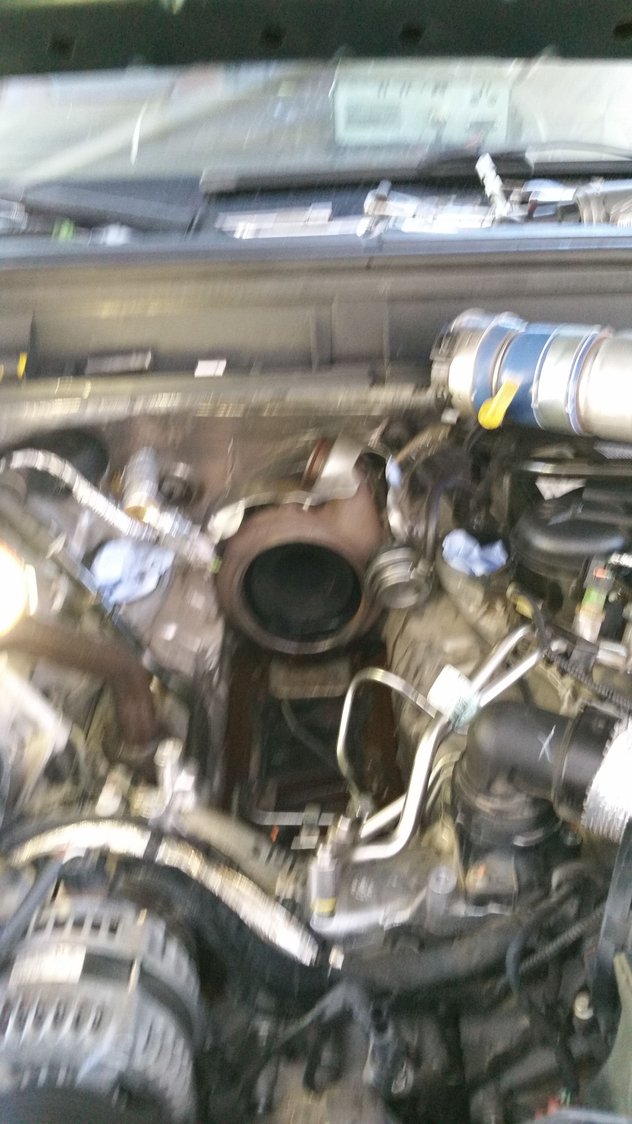

Close of of what the front of the turbo looks with some lines disconnected to make it easier to remove.


Click the image to open in full size.

Click the image to open in full size.

Turbo pulled


Click the image to open in full size.

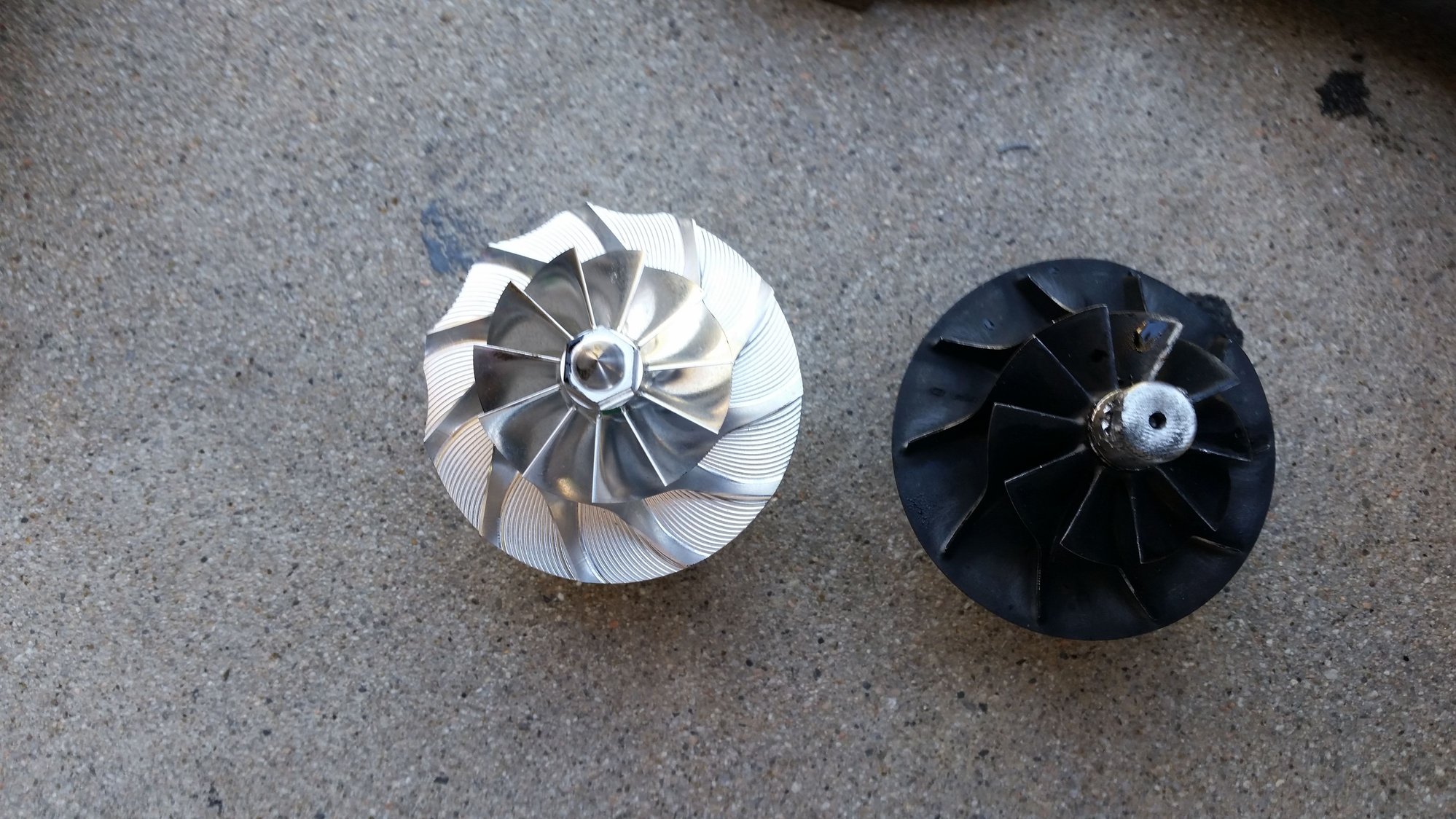

Wicked Wheelz left stock right


Click the image to open in full size.

just hand tighten on the center shaft after you clean it up.


Click the image to open in full size.

Temp probe for the turbo timer.


....I will post on how it runs with the new wheel.
__________________
Ken

2011 F250 KR - Helwig sway bars, Firestone Ride Right Airbags with on board air, wooden center console insert for air gauge, Retro Solution 6k headlights/fog lights, CB Radio, Wicked Wheelz turbo wheel
Reply With Quote
  #2
Old 07-23-2014, 10:10 PM
Tofan's Avatar
Tofan Tofan is online now
Elder User

Join Date: Aug 2013
Location: Washington State
Posts: 829
Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.
Great post brother. Obviously can you take a video of how it sounds? What kind of improves have you seen through power? Also any MPG gains? All things me and I'm sure a lot of other people are wondering Thanks again for the pictures and tutorial. Will come in handy when I put my Wicked Wheel in.
__________________
Matt
-2013 F350 SRW XLT 4x4 3.31 ELD Crew Cab Short Bed 6.7 Tuxedo Black Metallic - H & S, 5" Flo Pro, Dual Zone Climate Control Heated n Cooled Seats, TSP Toolbox.

Reply With Quote
  #3
Old 07-23-2014, 10:12 PM
Hard Workin Hard Workin is offline
Junior User

Join Date: Jun 2014
Posts: 78
Hard Workin is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Tofan View Post
Great post brother. Obviously can you take a video of how it sounds? What kind of improves have you seen through power? Also any MPG gains? All things me and I'm sure a lot of other people are wondering Thanks again for the pictures and tutorial. Will come in handy when I put my Wicked Wheel in.

Tofan,

I will post all that stuff when I get it back from the dealership. I didn't purge the fuel lines because I got so excited and vapor-locked the engine so she won't start.
__________________
Ken

2011 F250 KR - Helwig sway bars, Firestone Ride Right Airbags with on board air, wooden center console insert for air gauge, Retro Solution 6k headlights/fog lights, CB Radio, Wicked Wheelz turbo wheel
Reply With Quote
  #4
Old 07-23-2014, 10:21 PM
Tofan's Avatar
Tofan Tofan is online now
Elder User

Join Date: Aug 2013
Location: Washington State
Posts: 829
Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.
Will she try to start and nothing will happen? When I had the whole fuel injector break, mine was like that. Infact it got to a point where she died after I got her started. All it took was about 15 times turning the key to on and then off. Once she started after like 6 times trying, she would run and I would drive it and by the end of the day, she started every time.
__________________
Matt
-2013 F350 SRW XLT 4x4 3.31 ELD Crew Cab Short Bed 6.7 Tuxedo Black Metallic - H & S, 5" Flo Pro, Dual Zone Climate Control Heated n Cooled Seats, TSP Toolbox.

Reply With Quote
  #5
Old 07-23-2014, 11:50 PM
Hard Workin Hard Workin is offline
Junior User

Join Date: Jun 2014
Posts: 78
Hard Workin is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Tofan View Post
Will she try to start and nothing will happen? When I had the whole fuel injector break, mine was like that. Infact it got to a point where she died after I got her started. All it took was about 15 times turning the key to on and then off. Once she started after like 6 times trying, she would run and I would drive it and by the end of the day, she started every time.
She ran for about 3-4 seconds before she cut out. It then had a very hard time even turning the engine. I did get it to start 1 other time (turning the key on/off for 10 minutes) after the initial stall but she ran for about a second before she died. After the second time she barely through and then quit wouldn't do a damn thing when you turned the key to start.
__________________
Ken

2011 F250 KR - Helwig sway bars, Firestone Ride Right Airbags with on board air, wooden center console insert for air gauge, Retro Solution 6k headlights/fog lights, CB Radio, Wicked Wheelz turbo wheel
Reply With Quote
  #6
Old 07-24-2014, 12:32 AM
Tofan's Avatar
Tofan Tofan is online now
Elder User

Join Date: Aug 2013
Location: Washington State
Posts: 829
Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.
Hmm. I hope everything is ok. I don't think I have ever heard of an engine that was "vapor" locked. I have heard of Hydro Locked, and I know that it's not a good thing. Whats the solution to a vehicle that has been "vapor" locked?
__________________
Matt
-2013 F350 SRW XLT 4x4 3.31 ELD Crew Cab Short Bed 6.7 Tuxedo Black Metallic - H & S, 5" Flo Pro, Dual Zone Climate Control Heated n Cooled Seats, TSP Toolbox.

Reply With Quote
  #7
Old 07-24-2014, 01:02 AM
Hard Workin Hard Workin is offline
Junior User

Join Date: Jun 2014
Posts: 78
Hard Workin is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Tofan View Post
Hmm. I hope everything is ok. I don't think I have ever heard of an engine that was "vapor" locked. I have heard of Hydro Locked, and I know that it's not a good thing. Whats the solution to a vehicle that has been "vapor" locked?
Well if it is in-fact vapor locked, which I will find out here in the next day or so. A large amount of air made it to the injectors which makes the fuel system unable to create a vacuum to suck more fuel into the cylinders and the cylinder pressure is high enough to not allow for a full "throw." You pretty much have to bleed the system to release the built up pressure and clear the air out of the lines. This primarily deals with heavy equipment by it can happen to any type of diesel. I didn't have any engine codes so with the way it died, and the hard time it had turning over leads me to believe that this is the case. With the old diesels you could clear it out yourself but I don't know how you would do it with anything that has a HPFP.
__________________
Ken

2011 F250 KR - Helwig sway bars, Firestone Ride Right Airbags with on board air, wooden center console insert for air gauge, Retro Solution 6k headlights/fog lights, CB Radio, Wicked Wheelz turbo wheel
Reply With Quote
  #8
Old 07-24-2014, 01:22 AM
Tofan's Avatar
Tofan Tofan is online now
Elder User

Join Date: Aug 2013
Location: Washington State
Posts: 829
Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.Tofan has a great reputation on FTE.
Oh I see now, that definitely makes sense. I appreciate it. When are you supposed to get your rig back?
__________________
Matt
-2013 F350 SRW XLT 4x4 3.31 ELD Crew Cab Short Bed 6.7 Tuxedo Black Metallic - H & S, 5" Flo Pro, Dual Zone Climate Control Heated n Cooled Seats, TSP Toolbox.

Reply With Quote
  #9
Old 07-24-2014, 06:01 AM
2ndStroke's Avatar
2ndStroke 2ndStroke is online now
Post Fiend

Join Date: Nov 2011
Posts: 8,256
2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation2ndStroke has a superb reputation
Vary nice, minus the towing bit.

Great pics too
__________________
--Brett--
2011 F250 KR 6.7--6,000k heads/fogs/led switchbacks, black headlights, Recon, H&S mm, Flo pro with 6" powder-coated tip, Fusion front & rear bumpers, 20x10 Fuel Kranks, 295/65r20 Nitto trail Grapps, Denali sled deck, Compustar alarm/remote, some plasti dipping, Rigid LEDs--2013 Escape Titanium Ecoboost--2010 F150
Reply With Quote
  #10
Old 07-24-2014, 06:11 AM
senix's Avatar
senix senix is online now
Moderator

Join Date: Aug 2008
Location: Frederick, MD
Posts: 20,719
senix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputation
Great install so far.

Curious if this would help with towing and provide some engine braking for those down hill grades.
__________________
Scott-2013 F350 with a lot of tires.
2013 40' 4-slider stoneridge 5th wheel coming in at 15,400; 2015 Lincoln MKC
http://www.ford-trucks.com/guidelines.html

Previous Truck 2008 F250 6.4 with lots of upgrades and a suspension upgrade from Torklift International StableLoads
Reply With Quote
  #11
Old 07-24-2014, 08:10 AM
SavageNFS's Avatar
SavageNFS SavageNFS is online now
not a white truck

Join Date: Mar 2012
Location: Wisconsin
Posts: 8,015
SavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputation
SavageNFS SavageNFS
Cool pics so far...sorry about it not starting. I hope when you get it going you are happy with the results!
__________________
Andre '11 F-250 6.7L, CCSB, FX4, Lariat Ultimate, not a white truck, 20" XD Badlands (-12 offset) w/35x12.5x20 Toyo Open Country MT, 5100 Bilsteins, 7100 Bilstein SS, Firestone Airbags w/AirLift Wireless, B&W, H&S MM, aFe CAI, aFe 4" delete pipe SS, 5" SS MBRP muffler/exhaust, LineX, Roll-N-Lock, Recon stuff - 2012 Becker 25' Aluminum Enclosed Trailer (3 doos)-2011 Pinnacle 34RLTS
Reply With Quote
  #12
Old 07-24-2014, 04:51 PM
BigF350 BigF350 is offline
Internet Brands

Join Date: May 2004
Location: Santa Monica, CA
Posts: 18,531
BigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputationBigF350 has a superb reputation
adrian.erks.harris adrianerksharris
Thanks for sharing, like the others said, I'm really interested in how it works out for you. I assume your truck is otherwise stock?
Quote:
Originally Posted by Hard Workin View Post
Well if it is in-fact vapor locked, which I will find out here in the next day or so. A large amount of air made it to the injectors which makes the fuel system unable to create a vacuum to suck more fuel into the cylinders and the cylinder pressure is high enough to not allow for a full "throw." You pretty much have to bleed the system to release the built up pressure and clear the air out of the lines. This primarily deals with heavy equipment by it can happen to any type of diesel. I didn't have any engine codes so with the way it died, and the hard time it had turning over leads me to believe that this is the case. With the old diesels you could clear it out yourself but I don't know how you would do it with anything that has a HPFP.
I know that was the case with mechanically injected diesels, but my understanding with Common Rails you can't/don't need to bleed, and that its self bleeding, and that you should just cycle the fuel pump a number of times to get the air out of the system prior to the HPFP. You also may need to attempt to crank the truck a few times if you have air between the HPFP and the injectors. Am I wrong?
__________________
Adrian | 2005 4x4 Diesel Courier CrewCab in Aus | 2012 4x4 CC/SB F250 6.7 in the US
2000 4x4 SC/LB F350 7.3 ZF-6 (sold)
Reply With Quote
  #13
Old 07-24-2014, 05:23 PM
senix's Avatar
senix senix is online now
Moderator

Join Date: Aug 2008
Location: Frederick, MD
Posts: 20,719
senix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputation
Only thing I can think that may have happened is the fuel cutoff tripped because of this.
__________________
Scott-2013 F350 with a lot of tires.
2013 40' 4-slider stoneridge 5th wheel coming in at 15,400; 2015 Lincoln MKC
http://www.ford-trucks.com/guidelines.html

Previous Truck 2008 F250 6.4 with lots of upgrades and a suspension upgrade from Torklift International StableLoads
Reply With Quote
  #14
Old 07-24-2014, 07:35 PM
Hard Workin Hard Workin is offline
Junior User

Join Date: Jun 2014
Posts: 78
Hard Workin is gaining momentum as a positive member of FTE.
Well I just got the news back from the dealership.....the HPFP blew....FML...Waiting to hear back from my insurance company to see what they say...So it may take me a little extra time to post anything on the new wheel. When we pulled the fuel lines we were careful not to get anything in there but it doesn't look like it worked. Best Advice don't touch the #^$@&# fuel lines.
__________________
Ken

2011 F250 KR - Helwig sway bars, Firestone Ride Right Airbags with on board air, wooden center console insert for air gauge, Retro Solution 6k headlights/fog lights, CB Radio, Wicked Wheelz turbo wheel
Reply With Quote
  #15
Old 07-24-2014, 07:50 PM
senix's Avatar
senix senix is online now
Moderator

Join Date: Aug 2008
Location: Frederick, MD
Posts: 20,719
senix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputationsenix has a superb reputation
You didn't cap the fuel lines? Starvation is what I believe happened.

What about the injectors?
__________________
Scott-2013 F350 with a lot of tires.
2013 40' 4-slider stoneridge 5th wheel coming in at 15,400; 2015 Lincoln MKC
http://www.ford-trucks.com/guidelines.html

Previous Truck 2008 F250 6.4 with lots of upgrades and a suspension upgrade from Torklift International StableLoads
Reply With Quote
