Smile WOOD FLATBED BUILD - 3D MODEL AND CONSTRUCTION PLANS

Its time to say good bye to the stock bed and do some DESIGNING!! This is the sort of thing I get paid to do so here we go. Everybody please post your opinions and ideas of features I should add, subtract or re-think. So far the frame, deck and toolbox are to scale. The headache rack will need some final dimensional adjustments. The gas tank filler is routed into the toolbox and out the side to allow a nice downhill slope for filling. The plan is to keep the stock bumper and fit this bed just behind or just on top of it.

Once the final design is done, I will make construction plans for the bed in the case anyone on here is interested in building one of their own.

NOTE: To give credit where credit is due, BLUEOVALBUD created a thread awhile back and his design has inspired this one. I've done things differently and used some different measurements, but I really like the look of his flatbed. See his thread here: http://www.ford-trucks.com/forums/98...-write-up.html

This is a budget build. I have a good solid bed that needs a little more body work, and a tailgate that can be saved but I have no desire at this point to fix them. I am buying a farm within the next couple years and this truck will be used as a farm truck. I am painting the cab and installing the bed and calling it done. The truck has had the engine, transmission, rear axle, brakes blah blah blah all done.....just ask Gary. Its been in his shop several times now.

The cross members are 2 x 10's and the side boards are 2 x 12's. Deck boards are 2 x 8's. The suspension has room to travel to the bump stops. The toolbox uses a 2 x 4 frame and 1 x 8's around it. The lid is hinged and has room to open under the first bar of the headache rack.

Now the pics of the flatbed concept













__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #2
Old 06-25-2013, 07:36 PM
Gary Lewis's Avatar
Gary Lewis Gary Lewis is offline
FTE Chapter Leader

Join Date: Jul 2010
Location: Northeast, OK
Posts: 19,466
Gary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud of
Ray - That's awesome. I'm always blown away with CAD, especially 3D since I've tried it and find it HARD. Good job.
__________________
Rusty: '81 F150 Ranger XLT 4x4 w/a 351M, RV cam, Performer carb & intake, C6, & 3.50's
Dad's: '81 F150 Ranger XLT 4x4: Down for restomod: Full-roller "stroked 351M" w/Trick Flow heads, Weiand intake, Street Demon 750/ZF5/3.50 gears w/Kevlar clutches
Worst fear: I die and my wife sells my trucks for what I've told her I have in them.
Reply With Quote
  #3
Old 06-25-2013, 07:39 PM
Franklin2's Avatar
Franklin2 Franklin2 is offline
Moderator

Join Date: Jan 2001
Location: Staunton VA
Posts: 33,081
Franklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant futureFranklin2 has a brilliant future
I have seen a couple of flatbeds around my area that have this style of side rails on their beds made of wood. It caught my eye, I think it makes the flatbed look alot better. Flatbeds can be ugly sometimes.

Click the image to open in full size.
__________________
Dave F

1989 F250 XLT Diesel
Reply With Quote
  #4
Old 06-25-2013, 07:40 PM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Thanks Gary. I've been designing using Solidworks for 3.5-4 years now. I was able to do all this from scratch in about 2 hours today. The Tie-downs were downloaded from Free 3D CAD Library and Collaboration Tools for Engineers - GrabCAD, and the tail lights are from Free 3D Models, Free CAD Models. Everything else is mine.
__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #5
Old 06-25-2013, 08:28 PM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Quote:
Originally Posted by Franklin2 View Post
I have seen a couple of flatbeds around my area that have this style of side rails on their beds made of wood. It caught my eye, I think it makes the flatbed look alot better. Flatbeds can be ugly sometimes.

Click the image to open in full size.
oops. I missed your post while I was responding to Gary. Let me think about how to incorporate these into the design, so they can easily be installed later. I'm thinking steel round tubing painted black would look nice. That would be super easy to install later by drilling holes in the deck for the tubes to drop into.
__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #6
Old 06-25-2013, 08:49 PM
Gary Lewis's Avatar
Gary Lewis Gary Lewis is offline
FTE Chapter Leader

Join Date: Jul 2010
Location: Northeast, OK
Posts: 19,466
Gary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud of
Not sure the tubing approach would look right with your wooden bed. How about a wooden side with tubing attached to it to simplify attaching to the bed?
__________________
Rusty: '81 F150 Ranger XLT 4x4 w/a 351M, RV cam, Performer carb & intake, C6, & 3.50's
Dad's: '81 F150 Ranger XLT 4x4: Down for restomod: Full-roller "stroked 351M" w/Trick Flow heads, Weiand intake, Street Demon 750/ZF5/3.50 gears w/Kevlar clutches
Worst fear: I die and my wife sells my trucks for what I've told her I have in them.
Reply With Quote
  #7
Old 06-25-2013, 10:13 PM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Gary, that could work. Either way I do it, I can lay it out on the bed some 1.5" or so holes that will accept the tubing. Tomorrow at lunch I will build both concepts and post some pictures.

Anyone else have any ideas that would be handy to design into the bed?
__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #8
Old 06-26-2013, 09:35 AM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Got to work a little early and did a quick side rail in steel tube. Not sure I like the look like Gary said.

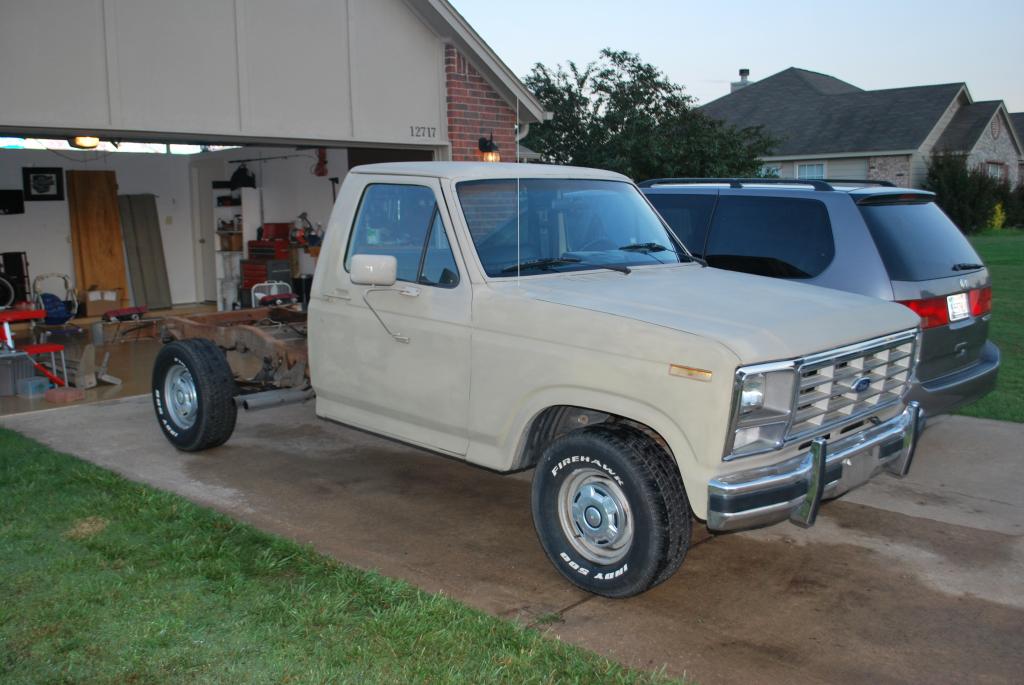

Frame is POR15'd and ready for construction of the bed.

__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #9
Old 06-26-2013, 09:47 AM
Gary Lewis's Avatar
Gary Lewis Gary Lewis is offline
FTE Chapter Leader

Join Date: Jul 2010
Location: Northeast, OK
Posts: 19,466
Gary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud of
Might look better if you incorporated the same angles as on the headache rack. Come up from the deck on the rearmost piece at the same angle and then go horizontal where it meets the current horizontal line. Similarly, on the top piece come up at the same angle to where it meets the horizontal line.

And, unless you are going to have a lot more wood underneath for the tubing to leverage against you could put similar plates to the headache rack's plates on the bottom of the tubing.
__________________
Rusty: '81 F150 Ranger XLT 4x4 w/a 351M, RV cam, Performer carb & intake, C6, & 3.50's
Dad's: '81 F150 Ranger XLT 4x4: Down for restomod: Full-roller "stroked 351M" w/Trick Flow heads, Weiand intake, Street Demon 750/ZF5/3.50 gears w/Kevlar clutches
Worst fear: I die and my wife sells my trucks for what I've told her I have in them.
Reply With Quote
  #10
Old 06-26-2013, 09:58 AM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Quote:
Originally Posted by Gary Lewis View Post
Might look better if you incorporated the same angles as on the headache rack. Come up from the deck on the rearmost piece at the same angle and then go horizontal where it meets the current horizontal line. Similarly, on the top piece come up at the same angle to where it meets the horizontal line.

And, unless you are going to have a lot more wood underneath for the tubing to leverage against you could put similar plates to the headache rack's plates on the bottom of the tubing.
Not exactly sure what you are saying with the angles, but I will try to model that during lunch.

I thought about the rails sliding down too far as well. I think another 2 x 4 screwed to the 2 x 12 on its backside would create a "shelf" for it to sit onto. I even thought about buying some sort of marine grade steel pocket for the tubing to slide into, but that is going to add too much cost. KISS (Keep It Simple Stupid) that's my motto for myself
__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #11
Old 06-26-2013, 10:11 AM
Gary Lewis's Avatar
Gary Lewis Gary Lewis is offline
FTE Chapter Leader

Join Date: Jul 2010
Location: Northeast, OK
Posts: 19,466
Gary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud of
Just break the top/rear 90 degree corners by coming up at the angle of the uprights on the headache rack. That'll make the sideboards look like they were designed by the same person that did the rack.
__________________
Rusty: '81 F150 Ranger XLT 4x4 w/a 351M, RV cam, Performer carb & intake, C6, & 3.50's
Dad's: '81 F150 Ranger XLT 4x4: Down for restomod: Full-roller "stroked 351M" w/Trick Flow heads, Weiand intake, Street Demon 750/ZF5/3.50 gears w/Kevlar clutches
Worst fear: I die and my wife sells my trucks for what I've told her I have in them.
Reply With Quote
  #12
Old 06-26-2013, 01:38 PM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Ok Gary, is this what you had in mind?




__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #13
Old 06-26-2013, 01:43 PM
Gary Lewis's Avatar
Gary Lewis Gary Lewis is offline
FTE Chapter Leader

Join Date: Jul 2010
Location: Northeast, OK
Posts: 19,466
Gary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud ofGary Lewis has much to be proud of
Perfect. Even better than I thought. Didn't expect the rear upright to move backward, but I see why - that pesky tire. Good job.
__________________
Rusty: '81 F150 Ranger XLT 4x4 w/a 351M, RV cam, Performer carb & intake, C6, & 3.50's
Dad's: '81 F150 Ranger XLT 4x4: Down for restomod: Full-roller "stroked 351M" w/Trick Flow heads, Weiand intake, Street Demon 750/ZF5/3.50 gears w/Kevlar clutches
Worst fear: I die and my wife sells my trucks for what I've told her I have in them.
Reply With Quote
  #14
Old 06-26-2013, 01:53 PM
RAY1986F150's Avatar
RAY1986F150 RAY1986F150 is offline
Posting Guru

Join Date: Feb 2011
Location: COLLINSVILLE, OK
Posts: 1,122
RAY1986F150 has a good reputation on FTE.RAY1986F150 has a good reputation on FTE.
RAY.CECIL3
Quote:
Originally Posted by Gary Lewis View Post
Perfect. Even better than I thought. Didn't expect the rear upright to move backward, but I see why - that pesky tire. Good job.
Thats why I provided the see through view of the deck. Although it was pretty obvious when I put the bottom supports on it that I was going to be digging the tire even without a see through view.

Next up is the Wood sided railings. That might have to wait for later though.
__________________
1986 F-150 4X2 BASE 302EFI C6 9 INCH REAR
Reply With Quote
  #15
Old 06-26-2013, 02:35 PM
Redneckfordf2502002's Avatar
Redneckfordf2502002 Redneckfordf2502002 is offline
Post Fiend

Join Date: Mar 2011
Location: Backwoods of Snowflake AZ
Posts: 8,479
Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.Redneckfordf2502002 has a spectacular reputation.
subscribing always loved flatbed fords think this will end up looking awesome.
Trav
__________________
Build thread for 73 Harley, 07 Harley, 84 B2 4x4, 88 F150 4x4, 89 F250 4x4, 02 F250 4x4 91 F250 4x4 90 f150 4x4 92 f250 4x494 Explorer 4x4 96 ranger 4x4 89 f350 crew 80 Mustang sedan
