'76 highboy rebuild... with a cummins

so after 2 years of planning my cummins build is fianally starting.
the build is going to be, 1976 reg cab f250 highboy, 1989 12V cummins, NV4500 5 speed, keeping the original axles and t case, detriot locker in the rear, and of course add intercooler, better turbo and up the pump.

heres the start, i did the body 2 years ago, however i was never really happy with how it turned out. then one or two bad 4wheeling trips... it needs work again.

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.


Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.

heres what my coolent looked like in the old 360... 90% sure it was a cracked block

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.


Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.

start of dissasembly

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.


Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.


Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.

getting the FE out

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
dirty cummins waiting to be cleaned up

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.

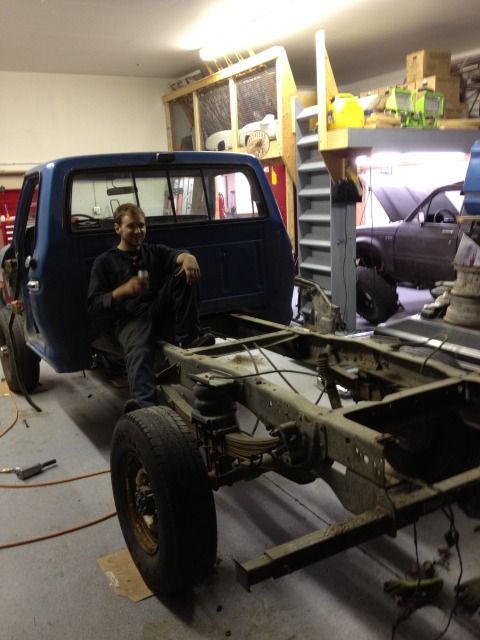

after one or few beers we decided to try and reassemble the truck

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.

this is the point we got to at the end of the weekend, lots of pressure washing later it should be ready for fabbing mounts and new parts

Click the image to open in full size.Click this bar to view the full image.

Click the image to open in full size.

lots more to come
__________________
'76 f-250 4x4 Ranger XLT, '89 12V cummins, NV4500 5 speed. 35's, '78 power steering swap
Reply With Quote
  #2
Old 10-18-2012, 08:43 AM
Krewat's Avatar
Krewat Krewat is offline
Super Moderator

Join Date: Jul 2002
Location: Long Island USA
Posts: 34,583
Krewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputation
Sounds like a fun project - keep the pics coming...
__________________
- art k. - Moderator for the Superduty, V10, 6.2L and FE forums
'13 Taurus SHO 3.5L Ecoboost w/Perf Pkg
'01 F250SD SC SB XLT V10 4x4 Volant CAI Hedman headers 5-star custom tunes on SCT X3
'97 Cougar XR7 30th Anniv Edition 4.6L
'74 F250 Highboy FE390 deceased!
I've been wrong before, I'll be wrong again. Just wait and see. ®
Reply With Quote
  #3
Old 10-18-2012, 08:15 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
so ive started working on cleaning up the engine. it was really a mess, lots of oil and grime. plus some surface rust from its life in road salt country. i pulled the basiclly everything off except the head to re gasket.

everything seems to be in great shape on the inside. that is except for the injector pump timimg gear, it has 3 cracks in it outward from the center, looks like it happened when they pulled it to rebuild the pump a couple years ago. so im on the lookout for a new gear.

i went with ford blue for the engine, just for all the people who like to call the cummins a dodge engine.
Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

also my lift arrived, i ordered the full 2" skyjacker lift, with rear springs. got to work on installing that yesterday
Click the image to open in full size.

Click the image to open in full size.
Click the image to open in full size.

plan for the weekend is to get the cab back on. i have cleaned up and painted the underside, and just have to fix the cab pearches on the frame.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________
'76 f-250 4x4 Ranger XLT, '89 12V cummins, NV4500 5 speed. 35's, '78 power steering swap
Reply With Quote
  #4
Old 10-19-2012, 01:52 PM
Ziegelsteinfaust's Avatar
Ziegelsteinfaust Ziegelsteinfaust is offline
Posting Guru

Join Date: Dec 2010
Location: Chino Hills
Posts: 1,125
Ziegelsteinfaust is starting off with a positive reputation.
Have you thought about boxing the frame?

The cummins weighs more then any gas engine available, and with the upgraded turbo. I think frame strength would be beneficial.
__________________
Sitzungstiefpunkt und fahrend langsam

......................_____
.........________//__{\_____
,,,,,,,/__(O)___//___/__(O)_/
Reply With Quote
  #5
Old 10-19-2012, 05:14 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
I did think about boxing it but I don't think it's going to be nessisary, these frames are pretty strong compared to things for the 80's and 90's. Plus the cummins only weighs 300lbs more than the FE block, and will probably only be an extra 150ft•lbs of torque or so
Reply With Quote
  #6
Old 01-25-2013, 10:41 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
finally getting around to uploading some pictues. lots of progress in the last few months.
Click the image to open in full size.
cleaned up and painted the under the cab section of frame, had to fix the cab mounts, they had the usual under the bushing rust.

Click the image to open in full size.
rolled it outside and hoisted the cab back on

Click the image to open in full size.
back inside, ready to start fabbing

Click the image to open in full size.
bolted the system together

Click the image to open in full size.
cut the cross member for clearence

Click the image to open in full size.
fit the engine

Click the image to open in full size.
bolted the front clip back together to set the spacing, i cant belive how nice it ended up fitting. no more than an inch spacing front to back.

Click the image to open in full size.
drive shaft will be pretty short

Click the image to open in full size.
i decided to keep the 89 style engine mounts, i fabbed these up to bolt to the stock ford bolt holes. i positioned the engine basically where the 360 was, more to the passenger side.

Click the image to open in full size.
me making sure the mouts are sturdy.

Click the image to open in full size.
after pulling the engine again i got to work on the x-member, i decided to box the frame and start from scratch.

Click the image to open in full size.

Click the image to open in full size.
frame painted and mounts installed

Click the image to open in full size.
engine back in and bolted up. finally feeling like it might actually come together

Click the image to open in full size.
now is the fun time, putting everything back together. installed my brake lines, i bought the stainless kit from bronco graveyard. fit awesome except for one line having the wrong fitting.

Click the image to open in full size.
i adapted the dodge clutch system, made a doubler plate either side for strength.

Click the image to open in full size.
added a mounting point to the ford pedal for the pushrod.

Thats all for now, next up is to work on the engine, need to do the killer dowel pin fix, re install the injector pump and line, and then get on doing the exhaust and turbo set up. should keep me busy
__________________
'76 f-250 4x4 Ranger XLT, '89 12V cummins, NV4500 5 speed. 35's, '78 power steering swap
Reply With Quote
  #7
Old 01-25-2013, 11:12 PM
co425's Avatar
co425 co425 is online now
Postmaster

Join Date: Oct 2010
Location: Sacramento Ca area
Posts: 2,574
co425 has a great reputation on FTE.co425 has a great reputation on FTE.co425 has a great reputation on FTE.co425 has a great reputation on FTE.co425 has a great reputation on FTE.co425 has a great reputation on FTE.
Nice work so far. I really like the ford blue on the cummins. I am considering painting mine ford flathead red.

Thank you so much for posting the picture of your drive shaft length. I too have a 2 wheel drive NV4500. I was almost sure it would fit but couldnt find confirmation that it would. You just saved me a chunk of change from not having to buy a chevy fixed yoke output.

How long overall will your shaft be? I was guessing right around 8" including the slip.
Reply With Quote
  #8
Old 01-25-2013, 11:36 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
dont remember how long the shaft will be, it will just be a straight shaft since the slip is in the transmission. and it looks like the dodge shaft and the ford shaft are the exact same diameter
__________________
'76 f-250 4x4 Ranger XLT, '89 12V cummins, NV4500 5 speed. 35's, '78 power steering swap
Reply With Quote
  #9
Old 01-27-2013, 11:40 AM
E.R.W. E.R.W. is offline
Senior User

Join Date: Oct 2011
Posts: 174
E.R.W. is starting off with a positive reputation.
looking real nice. ive got a 76 highboy that im about to but a cummins in. What kind of steering box did you use?
Reply With Quote
  #10
Old 01-27-2013, 03:39 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
its a 78-79 f250 4x4 steering box
__________________
'76 f-250 4x4 Ranger XLT, '89 12V cummins, NV4500 5 speed. 35's, '78 power steering swap
Reply With Quote
  #11
Old 07-19-2014, 10:21 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
So it's been a long time since I posted, but I have been working on it.
There's too much to write about, if anyone wants to know details ask away.
It moved under its own power for the first time today!
Anyway here's pictures



Reply With Quote
  #12
Old 07-20-2014, 12:24 AM
Truck Guy99's Avatar
Truck Guy99 Truck Guy99 is offline
Posting Guru

Join Date: Jul 2011
Location: The lone star state
Posts: 1,056
Truck Guy99 has a good reputation on FTE.Truck Guy99 has a good reputation on FTE.Truck Guy99 has a good reputation on FTE.
Good,work. And please tell all details because it helps everyone considering one of thos. I'm putting a p pumped 12 valve backed by an NV4500 in my sig truck. Look forward to the progress and hopefully the finished result
__________________
My names Tye and I'm 16 "The Red Baron" 1988 F350 4x4 CCLBSRW 460 V8 C6 3 spd Hedman Mid-length Hedders, Turbo muffler with duals, Ranch Hand bumper, blacked out chrome, cb with antenna, and a thumpin Pioneer stereo! Coming soon: Dually conversion and Cummins swap!
Build thread http://www.ford-trucks.com/forums/12...ld-thread.html
Reply With Quote
  #13
Old 07-24-2014, 11:42 AM
1972RedNeck's Avatar
1972RedNeck 1972RedNeck is offline
Posting Guru

Join Date: Feb 2011
Location: Townsend, MT
Posts: 2,327
1972RedNeck is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by co425 View Post
Thank you so much for posting the picture of your drive shaft length. I too have a 2 wheel drive NV4500. I was almost sure it would fit but couldnt find confirmation that it would. You just saved me a chunk of change from not having to buy a chevy fixed yoke output.
If you want a slip joint, the Dodge output actually lets you get away with a fair bit less room.
__________________
1966 F250 4X4 416 Clark 280V
1990 F350 4X4 4BTA E4OD
Quote:
Originally Posted by HIO Silver View Post
Why polish a turd?
Quote:
Originally Posted by HIO Silver View Post
Based on everything I've here in Fte, websites, and articles, a 12-valve Cummins is the no-brainer choice.
Quote:
Originally Posted by Chevy_Eater View Post
Ah, yes, the 460 phenomena, once Al Gore invented the internet the 460 found a place it could get double digit fuel economy.
Reply With Quote
  #14
Old 07-25-2014, 10:26 AM
Krewat's Avatar
Krewat Krewat is offline
Super Moderator

Join Date: Jul 2002
Location: Long Island USA
Posts: 34,583
Krewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputationKrewat has a superb reputation
Couldn't you at least grind off the "Dodge Ram" from the turbo output ?
__________________
- art k. - Moderator for the Superduty, V10, 6.2L and FE forums
'13 Taurus SHO 3.5L Ecoboost w/Perf Pkg
'01 F250SD SC SB XLT V10 4x4 Volant CAI Hedman headers 5-star custom tunes on SCT X3
'97 Cougar XR7 30th Anniv Edition 4.6L
'74 F250 Highboy FE390 deceased!
I've been wrong before, I'll be wrong again. Just wait and see. ®
Reply With Quote
  #15
Old 07-27-2014, 01:22 PM
gsb15 gsb15 is offline
Junior User

Join Date: Apr 2010
Posts: 64
gsb15 is starting off with a positive reputation.
Quote:
Originally Posted by Krewat View Post
Couldn't you at least grind off the "Dodge Ram" from the turbo output ?
Haha i figured it was kinda more insulting to leave it on, the dodge truck was all used up so the engine had to go into a 13 year older ford.
Plus I'm going to add an intercooler before too long.
__________________
'76 f-250 4x4 Ranger XLT, '89 12V cummins, NV4500 5 speed. 35's, '78 power steering swap
Reply With Quote
Old 07-27-2014, 01:22 PM



Reply

Similar Threads
Thread Thread Starter Forum Replies Last Post
manual hub install High Intentions Super Duty & Heavy Duty 11 03-24-2013 01:30 PM
swap 97 axle into 85, parts catalog request dtgl90vt Pre-Power Stroke Diesel (7.3L IDI & 6.9L) 21 11-24-2012 02:13 AM
So Cal wrecking yard find gangstakr California, Southern Chapter 3 11-05-2012 01:10 PM
Door Hinge Identification dynamic 1961 - 1966 F-100 & Larger F-Series Trucks 11 06-24-2012 05:45 PM
Rear Bumper compatiablity for (1975 Ranchero) chamblizi Ranchero & 1961 - 1967 Econoline 37 05-04-2012 01:30 PM


Go Back   Ford Truck Enthusiasts Forums > Performance, Engines & Troubleshooting > Engine Swaps

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is On
Trackbacks are On
Pingbacks are On
Refbacks are On

Forum Jump


Participate In The Forums

Create new posts and participate in discussions. It's free!

Sign Up »





All times are GMT -5. The time now is 04:26 AM.


Powered by vBulletin® Version 3.8.7 AC1
Copyright ©2000 - 2014, Jelsoft Enterprises Ltd.
Advertising - Terms of Use - Privacy Statement - Jobs
This forum is owned and operated by Internet Brands, Inc., a Delaware corporation. It is not authorized or endorsed by the Ford Motor Company and is not affiliated with the Ford Motor Company or its related companies in any way. Ford® is a registered trademark of the Ford Motor Company.

vbulletin Admin Backup
