Dana 44 Solid Axle Swap Project/Pictures

I have a 1993 f150 flareside that i lifted 6 inches last year. I bought the lift from skyjacker for $1800. It included 6 inch lift springs both front and back, as well as extended radius arms. After all of that work and swapping 4.10's both front and rear I have decided to ditch the TTB Garbage suspension for the proven performance of the solid axle.

This is what the truck looks like now with the TTB 6 inch lift on 35's
Photobucket
Photobucket
Photobucket
A few days ago i found a dana 44 out of a 1979 bronco on craigslist for $140 and picked it up two days later.
Photobucket
Photobucket
Photobucket
Photobucket

I tore the axle down and this weekend ill be sandblasting the entire thing to get it ready for a fresh coat of paint.

In the mean time i have been compiling a list of parts id need to complete the swap.

So far i have purchased
Brake calipers-
Brake pads
new spindles
dana 44 master overhaul kit from jeffs bronco graveyard
4* c-bushings
4 inch lift coils from bds on JBG
New Ball joints.

Photobucket
Photobuc<a href=Photobucketket">

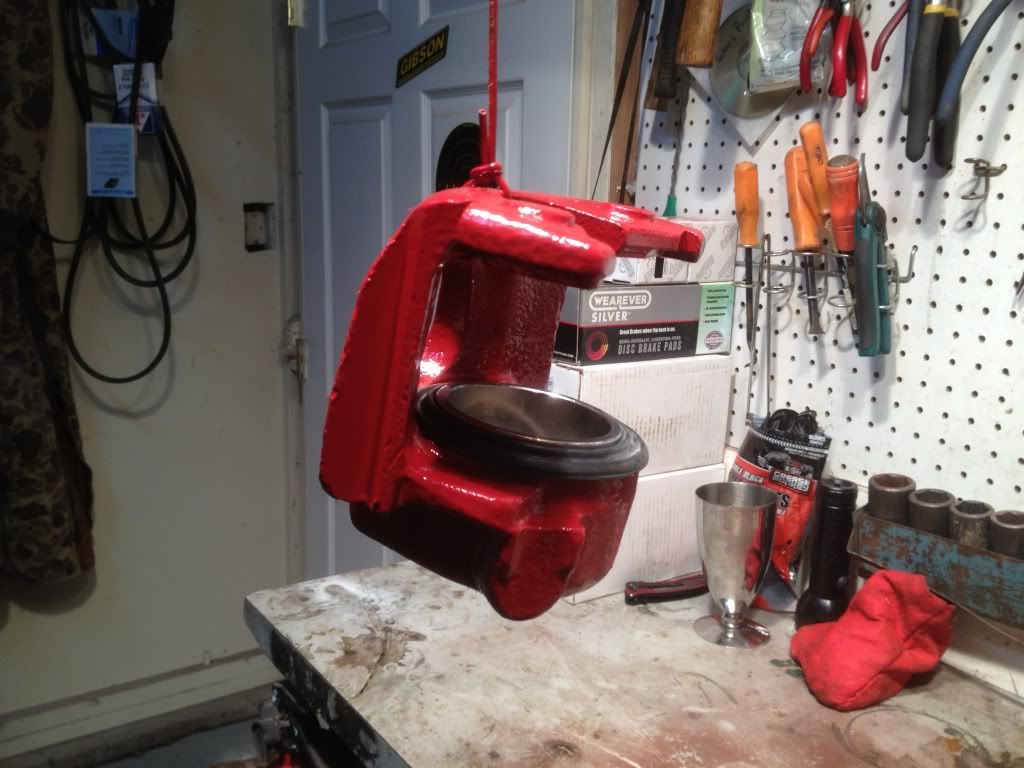

I painted the calipers with hi-temp engine enamel. I had painted my rear drums with the same paint and it held up great.

all thats left to get is lower coil spring pads and retainers
so far i have spent somewhere around 900-1000 total for all of the parts

I plan to reuse the hubs and rotors from the ttb. As well as the 4.10 gears.

I would really like to have extended radius arms for the swap but im not paying 500 plus for a pair so i plan on grafting the stock 1979 radius arm mounts into my extended ttb arms by notching the rectangular tubing to allow the c shaped mount to slide in and be welded solid.
Photobucket

it should work out fine as long as i measure the angles carefully.

the only thing im not sure about is if the stock traction bar will work under my truck since it's not adjustable.
Reply With Quote
  #2 (permalink)
Old 06-08-2012, 11:17 PM
SCRebel's Avatar
SCRebel SCRebel is offline
Posting Guru

Join Date: Jun 2011
Location: Conway, South Carolina
Posts: 1,293
SCRebel is starting off with a positive reputation.
I would just get a 1979 adjustable track bar from Broncograveyard.com. That's what I got, they're like $150 or so.

EDIT:
I also run the a SAS adjustable drag link. Its adjustable and connects the 80-96 pitman arm to the solid axle tie rod. Got it from Jeff's Bronco Grave Yard, and yes there is a difference between the 70's pitman arm and 80-96.
__________________
Carolina Man
SCV Member, Camp Litchfield #132

1989 F150 XLT Lariat, Super Cab, Shortbed, 4x4, AOD transmission, 351w EFI, 1979 Dana 44 Solid Axle Swap, 3G 130A Swap, 8" lift, 35*12.5*R15 BFG AT's, 4.56 gearing. AKA: The Grey Goose
Reply With Quote
  #3 (permalink)
Old 06-09-2012, 02:05 AM
GNR22's Avatar
GNR22 GNR22 is offline
Posting Guru

Join Date: Mar 2011
Location: Princeton, Wisconsin
Posts: 1,956
GNR22 has a good reputation on FTE.GNR22 has a good reputation on FTE.
That's a really good deal on the axle for what's there. I'd also suggest the adjustable track bar.
Really nice looking truck by the way. It's so weird to me, seeing a truck that isn't just rotted out like they all are up here in WI.
__________________
--Davey
-1989 F250 (RCLB) 4x4, 4speed NP435 tranny, SAS D44HD, 351w, 3.55 (L/S front and rear), F250/350 Hybrid Suspension, Pacesetter Shorty Headers, into 3" Summit Racing Street and Strip Mufflers, 235/85R16 Uniroyal Liberators.
-1994 Thunderbird LX, Moonlight Blue, 4.6L, Automatic, Bone Stock
-2012 Focus SE
Reply With Quote
  #4 (permalink)
Old 06-09-2012, 06:38 PM
FlaresideJack FlaresideJack is offline
Freshman User

Join Date: Feb 2010
Posts: 28
FlaresideJack is starting off with a positive reputation.
Quote:
Originally Posted by SCRebel View Post
I would just get a 1979 adjustable track bar from Broncograveyard.com. That's what I got, they're like $150 or so.

EDIT:
I also run the a SAS adjustable drag link. Its adjustable and connects the 80-96 pitman arm to the solid axle tie rod. Got it from Jeff's Bronco Grave Yard, and yes there is a difference between the 70's pitman arm and 80-96.
jeff's has both a drag link and trac bar?

also could you post some pictures of what setup you're running
Reply With Quote
  #5 (permalink)
Old 06-09-2012, 06:42 PM
FlaresideJack FlaresideJack is offline
Freshman User

Join Date: Feb 2010
Posts: 28
FlaresideJack is starting off with a positive reputation.
The truck came from pennsylvania where rusted out trucks are pretty much the only thing you see. Lucky the guy who had it before me too really good care of it. Ive only had the truck for 4 or 5 years but i try to keep it looking good. Plus the fiberglass bedsides prevent common wheel well rust. Im from new jersey near the barnegat bay so the salty air gets to a lot of vehicles around here.
Reply With Quote
  #6 (permalink)
Old 06-09-2012, 11:28 PM
SCRebel's Avatar
SCRebel SCRebel is offline
Posting Guru

Join Date: Jun 2011
Location: Conway, South Carolina
Posts: 1,293
SCRebel is starting off with a positive reputation.
Quote:
Originally Posted by FlaresideJack View Post
jeff's has both a drag link and trac bar?

also could you post some pictures of what setup you're running
Yes, they have the drag link and track bar.

My setup:
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

I bought a drop 6" lift down pitman arm, what I wish I did was flip the tie rod over knuckle and just kept the factory pitman arm.
__________________
Carolina Man
SCV Member, Camp Litchfield #132

1989 F150 XLT Lariat, Super Cab, Shortbed, 4x4, AOD transmission, 351w EFI, 1979 Dana 44 Solid Axle Swap, 3G 130A Swap, 8" lift, 35*12.5*R15 BFG AT's, 4.56 gearing. AKA: The Grey Goose
Reply With Quote
  #7 (permalink)
Old 06-15-2012, 07:20 PM
FlaresideJack FlaresideJack is offline
Freshman User

Join Date: Feb 2010
Posts: 28
FlaresideJack is starting off with a positive reputation.
I've made some progress with my project over the past week. Ive been spending my time after work cleaning up and prepping the axle and other parts for paint and the axle rebuild.

I borrowed a small portable sand blaster from a friend and used it to clean the axle, knuckles, and caliper mounts. They came out great. Now they are all painted up and waiting to be put back together.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
I removed the front axles and the third member from the TTB because It has the 4.09 gears i need to swap into the new axle. If my truck wasnt my dd id just take it all apart now but i need to be able to drive it.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

I just bought a shop press and bearing splitter to help in the rebuild but i needed to weld up a base for pressing the carrier bearings off. it came out nice

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.

The rest of the parts i ordered came the other day beside the new lift springs.

i'm going to be using my stock coil spring towers with the new axle. Has anyone had any problems doing this? I know some people say you should use the older style but some say the newer ones work fine.
Reply With Quote
  #8 (permalink)
Old 06-15-2012, 07:57 PM
88dually 88dually is offline
Elder User

Join Date: Nov 2010
Location: Ocean County, NJ
Posts: 716
88dually is gaining momentum as a positive member of FTE.
Nice progress.
Reply With Quote
  #9 (permalink)
Old 06-19-2012, 07:56 PM
jmjc123 jmjc123 is offline
New User

Join Date: Jan 2006
Posts: 13
jmjc123 is starting off with a positive reputation.
I sure would like to know what the final outcome of the build is?

I am thinking about something similar; however, I do a bit of towing so I would definately need to keep the front sway bar to limit roll. Does your new setup address that issue?

Thanks in advance

jc
Reply With Quote
  #10 (permalink)
Old 06-22-2012, 02:34 PM
Slowroll90 Slowroll90 is offline
Senior User

Join Date: Sep 2010
Posts: 202
Slowroll90 is starting off with a positive reputation.
Subscribed,
Interested in future progress photos
Reply With Quote
  #11 (permalink)
Old 06-22-2012, 04:07 PM
Encho's Avatar
Encho Encho is online now
The Brown Mod

Join Date: Dec 2004
Location: Caracas, Venezuela
Posts: 5,896
Encho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant futureEncho has a brilliant future
I like what you've done so far. Even though if I ever do this I'll go with Dana 60 front and rear, too much hassle to end up with something very similar (regarding strenght). But you really have done a great job, and everything looks extremelly nice.
__________________
1993 Special Edition Bronco: 5.0lt V8, E4OD Auto, MM Supreme manual hub lockers and a sweet roof tent, ROTW in 2/9/09
My Write-ups: Ford Steering Box Rebuild / Ford Front End Rebuild and auto hubs replacement / Ford Rear Drum Brakes / Ford E4OD Cooler & Shift Kit mods, drain-refill procedures "He who uses no jack stands is destined to become a jack stand himself"
Reply With Quote
  #12 (permalink)
Old 07-02-2012, 07:20 PM
FlaresideJack FlaresideJack is offline
Freshman User

Join Date: Feb 2010
Posts: 28
FlaresideJack is starting off with a positive reputation.
I've been real busy over the past few weeks with work and family stuff so progress is slow.

Right now the front end of the truck is gutted and that ttb garbage is out of the way.

Click the image to open in full size.

Click the image to open in full size.

This was easy to do as i expected everything came right apart unlike last year when i was putting the lift on the first time.


once all of that was out i robbed the two axle halves of their hubs and rotors because they are a direct swap to the 1979 spindles.

I've also finished the gear swap and the complete rebuild of the axle i love the way the red calipers and diff cover look with it all done.

Click the image to open in full size.

Click the image to open in full size.

Click the image to open in full size.

I had to buy new locking hubs because my old ones were damaged from water getting into the hub and sitting like that so i decided to try out Milemarker Premium Stainless hubs.

Click the image to open in full size.

I like the way they are built and they seem just as good if new beefier than the warn premiums i have had before but only time will tell if they hold up.

I have run into a problem with my radius arm situation. Earlier today i attempted to cut up my ttb extended arms and weld in the cast c's from the stock arms i had.

This didnt work out well not only is the angle of the arms way off but they ended up being about the same length of stock arms so i ditched that idea.

Does anyone know where i can get radius arms for cheap. Im having no luck finding any near me. Also id like to have extended ones but for 500-700 for a pair thats not looking too good. If anyone could find me a used pair of arms extended or stock id appreciate it.
Reply With Quote
  #13 (permalink)
Old 08-18-2012, 03:14 AM
MACbuilt85 MACbuilt85 is offline
New User

Join Date: Aug 2012
Location: Ferndale WA.
Posts: 2
MACbuilt85 is starting off with a positive reputation.
This is an awesome project. I need a tip here real bad. I own an 85 F150 300 inline 6 4speed/w 32's for now and a 9" out back with dana44 up front on coils. i need one of those adjustable track bar brackets. and what trac bar to get. I know i can use the adjust able drag linkage from 92-97 f350. and still need to do the brakes. but for free I'm doing good. I got nothing in cash into this truck and for that she's amazing.
Reply With Quote
  #14 (permalink)
Old 08-18-2012, 03:31 AM
MACbuilt85 MACbuilt85 is offline
New User

Join Date: Aug 2012
Location: Ferndale WA.
Posts: 2
MACbuilt85 is starting off with a positive reputation.
project pics

[IMG]file:///C:/Users/seth/Pictures/2012-07-27/053.JPG[/IMG][IMG][IMG]file:///C:/U[IMG][IMG][/IMG][/IMG]sers/seth/Pictures/2012-07-27/035.JPG[/IMG][/IMG]
Reply With Quote
  #15 (permalink)
Old 09-19-2012, 10:49 AM
Seabee_Ford's Avatar
Seabee_Ford Seabee_Ford is offline
New User

Join Date: Sep 2012
Posts: 13
Seabee_Ford is starting off with a positive reputation.
For the radius arms try your local scrap/salvage yards. Hopefully you have a 4x4 salvage yard near you. I just picked up a set with my dana 44 yesterday at Nuelle's 4x4 Salvage here in Missouri. They have one left. They were $50 a pop.

I'm doing this swap for my 93 F150 for good reason. The actual bracket that the Passenger side of the TTB attaches to snaped in half up top by the oil pan. Luckily it didn't get into the pan but naturally it needs to go... Could have had something to do with the 39.5's I have on it, but it was more likely the ditch that my truck ate. Yes the truck won by far.. 3 foot ditch, scared the crap outa me and my buddy but we drove away fine... **Note: be cautiouse in tall grass it made it look level** The truck was still drivable untill my wife ate a tree stump in it one night about a year later. It was only a crack until the stump.

I'm still in the parts collecting phase of the build tho. I've hit a snag finding any spring seats but I'm hopefull that I can fab something out of what I have on the TTB.

So far all I have is the axle, complete knuckle to knuckle, and the two stock radius arms for the 79 150 they came out of. I have to drop the gears in mine to so I'll be buying those soon. The downside is I have to drop the rear end gears too so mine will take some time to save up for.
Reply With Quote
