  #61
Old 01-22-2013, 07:30 AM
bryced15's Avatar
bryced15 bryced15 is offline
Junior User

Join Date: Oct 2010
Location: Lenoir City, TN
Posts: 61
bryced15 is starting off with a positive reputation.
Quote:
Originally Posted by Sean Nederfield View Post
I did the same upgrade last month.
The connector has audio, A+,ground. The switch power to turn the amp on is only 5 volts so it did not work to turn the amp on. I had to run a switched 12 power line back. I just tapped off of the radio fuse and ran the wire back.
It was a great install. I noticed a huge difference. I had also upgraded the 4 door speakers earlier.
I'm totally audio ignorant, so do you recall what colors were what wires when you did this?
Reply With Quote
  #62
Old 01-22-2013, 10:54 AM
RobFlag RobFlag is offline
Senior User

Join Date: Nov 2011
Location: FLG AZ
Posts: 301
RobFlag is gaining momentum as a positive member of FTE.
I installed this amp and the remote turn on works. Kinda scares the crap out of you the first couple of times it turns on with a big THUMP coming from the back seat area.

Amazon.com: Rockford Fosgate R500-1D Prime 500 Watt Mono D-class Amplifer: Car Electronics Amazon.com: Rockford Fosgate R500-1D Prime 500 Watt Mono D-class Amplifer: Car Electronics

Replaced the factory driver with this. Thought I had ordered the 8" but when the 10" arrived, I figured out a way to make it work in the stock box. Combination of this driver and amp rock pretty well for a cost effective system.

Amazon Amazon

Probably should have upgraded the power wiring to the amp, specs call for 4 gauge and I used the factory 16ish gauge.
Reply With Quote
  #63
Old 01-24-2013, 09:19 PM
Sean Nederfield Sean Nederfield is offline
New User

Join Date: Dec 2011
Location: Montville, NJ
Posts: 5
Sean Nederfield is starting off with a positive reputation.
bryced15,

There is 5 wires to the factory amp mounted on the sub box.
Green/white Audio -
Violet/green Audio +
Blue/Red (heavier wire) Alway hot power wire for the amp A+
Black/yellow Ground
Violet/red is the switched power to turn the amp on. This is the wire that will not work as it only has 5 volts on it. I just capped it off with a piece of heat shrink tubing. The amp requires 12 volts to turn it on. I ran a wire from the fuse box with a fuse tap from the radio fuse. When the key is turned on it gives 12 volts to the amp and turns it on.

I hope this helps. I got a Ford schematic from another member posted on another thread. I will look and try to find the link.

Sean
Reply With Quote
  #64
Old 01-24-2013, 09:45 PM
Sean Nederfield Sean Nederfield is offline
New User

Join Date: Dec 2011
Location: Montville, NJ
Posts: 5
Sean Nederfield is starting off with a positive reputation.
Here is a link to the thread from 2000silverbullet with a PDF of the Ford factory schematic. It gives you all of the wiring and color codes.

I hope this link works.


http://www.ford-trucks.com/forums/98...bwoofer-3.html
Reply With Quote
  #65
Old 01-25-2013, 05:27 AM
bryced15's Avatar
bryced15 bryced15 is offline
Junior User

Join Date: Oct 2010
Location: Lenoir City, TN
Posts: 61
bryced15 is starting off with a positive reputation.
Quote:
Originally Posted by Sean Nederfield View Post
bryced15,

There is 5 wires to the factory amp mounted on the sub box.
Green/white Audio -
Violet/green Audio +
Blue/Red (heavier wire) Alway hot power wire for the amp A+
Black/yellow Ground
Violet/red is the switched power to turn the amp on. This is the wire that will not work as it only has 5 volts on it. I just capped it off with a piece of heat shrink tubing. The amp requires 12 volts to turn it on. I ran a wire from the fuse box with a fuse tap from the radio fuse. When the key is turned on it gives 12 volts to the amp and turns it on.

I hope this helps. I got a Ford schematic from another member posted on another thread. I will look and try to find the link.

Sean
Thanks! That's just what I needed to know.
Reply With Quote
  #66
Old 01-25-2013, 05:37 AM
2000silverbullet's Avatar
2000silverbullet 2000silverbullet is offline
Moderator

Join Date: Aug 2004
Location: Pittsburgh
Posts: 5,314
2000silverbullet is a splendid one to behold2000silverbullet is a splendid one to behold2000silverbullet is a splendid one to behold2000silverbullet is a splendid one to behold2000silverbullet is a splendid one to behold2000silverbullet is a splendid one to behold2000silverbullet is a splendid one to behold
Quote:
Originally Posted by RobFlag View Post
Probably should have upgraded the power wiring to the amp, specs call for 4 gauge and I used the factory 16ish gauge.
I would seriously consider running new wires...
__________________

Matt
2011 F350 - 6.2 CC, LB, 4.30s, Lariat Ultimate pkg, FX4, Amp steps, Lockpick, AC LC6i, JL HD900/5, JL 13TW5, JL C5-570's, Bilstein 7100 stabilizer, Rancho RS9000XL's, Leveled w/ 35" Toyo M/T's and 5 Star tuned
**Sold - 2000 F250 V10, 6.5" Pro Comp, 37" Toyo MT's
Reply With Quote
  #67
Old 01-25-2013, 07:04 AM
SavageNFS's Avatar
SavageNFS SavageNFS is online now
not a white truck

Join Date: Mar 2012
Location: Wisconsin
Posts: 7,880
SavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputation
SavageNFS SavageNFS
Quote:
Originally Posted by RobFlag View Post
Probably should have upgraded the power wiring to the amp, specs call for 4 gauge and I used the factory 16ish gauge.
That will lead to either the wiring failing due to overload or the amp failing prematurely due to inadequate power supply and it choking itself. I've seen wiring get overloaded so much it melts the jacket off and shorts the first piece of metal it meets. Your truck, your rules, but you are on borrowed time in my opinion.
__________________
Andre '11 F-250 6.7L, CCSB, FX4, Lariat Ultimate, not a white truck, 20" XD Badlands (-12 offset) w/35x12.5x20 Toyo Open Country MT, 5100 Bilsteins, 7100 Bilstein SS, Firestone Airbags w/AirLift Wireless, B&W, H&S MM, aFe CAI, aFe 4" delete pipe SS, 5" SS MBRP muffler/exhaust, LineX, Roll-N-Lock, Recon stuff - 2012 Becker 25' Aluminum Enclosed Trailer (3 doos)-2011 Pinnacle 34RLTS
Reply With Quote
  #68
Old 01-25-2013, 09:21 AM
bryced15's Avatar
bryced15 bryced15 is offline
Junior User

Join Date: Oct 2010
Location: Lenoir City, TN
Posts: 61
bryced15 is starting off with a positive reputation.
Quote:
Originally Posted by SavageNFS View Post
That will lead to either the wiring failing due to overload or the amp failing prematurely due to inadequate power supply and it choking itself. I've seen wiring get overloaded so much it melts the jacket off and shorts the first piece of metal it meets. Your truck, your rules, but you are on borrowed time in my opinion.
Ok good call. I'm going to run a 10 gauge power from the battery. That's what my amp calls for. Thanks for all the good advice.
Reply With Quote
  #69
Old 01-25-2013, 10:00 AM
_red rocket_ _red rocket_ is offline
Senior User

Join Date: Aug 2007
Location: mountains west of Denver
Posts: 329
_red rocket_ is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Sean Nederfield View Post
There is 5 wires to the factory amp mounted on the sub box.
Green/white Audio -
Violet/green Audio +
Blue/Red (heavier wire) Alway hot power wire for the amp A+
Black/yellow Ground
Violet/red is the switched power to turn the amp on. This is the wire that will not work as it only has 5 volts on it. I just capped it off with a piece of heat shrink tubing. The amp requires 12 volts to turn it on. I ran a wire from the fuse box with a fuse tap from the radio fuse. When the key is turned on it gives 12 volts to the amp and turns it on.

I hope this helps. I got a Ford schematic from another member posted on another thread. I will look and try to find the link.
Thanks for the pinout info.
__________________
'11 F350 Lariat 6.7L SRW CC 4x4 LB
'07 Impreza STI Ltd
Reply With Quote
  #70
Old 01-25-2013, 01:54 PM
jetpilot2's Avatar
jetpilot2 jetpilot2 is offline
Senior User

Join Date: Sep 2009
Location: Va Beach, VA
Posts: 489
jetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to behold

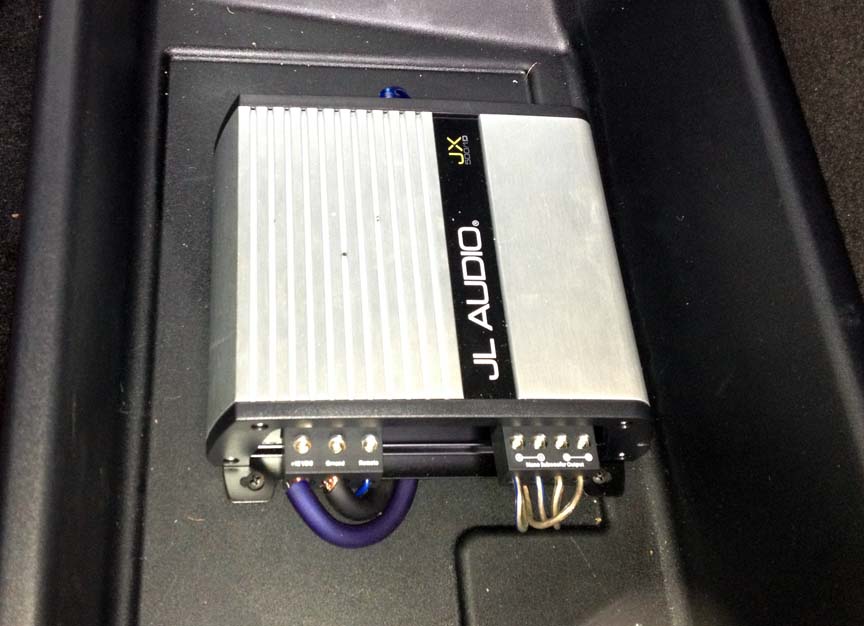

Here's my upgrade plus all the door speakers! For as nice as these trucks are, Ford has THE WORST audio!!! It was the same way in my f-150.

Click the image to open in full size.
Click the image to open in full size.
Click the image to open in full size.
__________________

George - 2012 F-350 CC DRW 65 Gal. Titan Tank, AirLift Bags, B&W G/N, Line-X, Pace Edwards Electric Cover, JL Audio Speakers, Subs & Amp, and LockPic
2007 S/C F-150 FX2 Sold and replaced by a Mini Cooper (LOL)
Reply With Quote
  #71
Old 01-25-2013, 02:01 PM
SavageNFS's Avatar
SavageNFS SavageNFS is online now
not a white truck

Join Date: Mar 2012
Location: Wisconsin
Posts: 7,880
SavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputationSavageNFS has a superb reputation
SavageNFS SavageNFS
That looks great George!
__________________
Andre '11 F-250 6.7L, CCSB, FX4, Lariat Ultimate, not a white truck, 20" XD Badlands (-12 offset) w/35x12.5x20 Toyo Open Country MT, 5100 Bilsteins, 7100 Bilstein SS, Firestone Airbags w/AirLift Wireless, B&W, H&S MM, aFe CAI, aFe 4" delete pipe SS, 5" SS MBRP muffler/exhaust, LineX, Roll-N-Lock, Recon stuff - 2012 Becker 25' Aluminum Enclosed Trailer (3 doos)-2011 Pinnacle 34RLTS
Reply With Quote
  #72
Old 01-25-2013, 02:15 PM
jetpilot2's Avatar
jetpilot2 jetpilot2 is offline
Senior User

Join Date: Sep 2009
Location: Va Beach, VA
Posts: 489
jetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to behold
Thanks Andre!

It sounds even better!!!
__________________

George - 2012 F-350 CC DRW 65 Gal. Titan Tank, AirLift Bags, B&W G/N, Line-X, Pace Edwards Electric Cover, JL Audio Speakers, Subs & Amp, and LockPic
2007 S/C F-150 FX2 Sold and replaced by a Mini Cooper (LOL)
Reply With Quote
  #73
Old 01-25-2013, 02:42 PM
ruschejj's Avatar
ruschejj ruschejj is offline
Postmaster

Join Date: Jan 2009
Location: Greenwood, SC
Posts: 4,699
ruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud of
Joel Rusche Joel Rusche Joel Rusche
Awesome George. That's pretty much what mine looks like except I made two enclosures instead of one long one. The driver side box is an L shape for that window motor.
__________________
2015 F350 CC KR SRW LB 4x4, 3.55ELD, ordered 9/4/14, home 10/24/14. Factory 5th wheel set up, VIAIR #10009 kit, train horns, ride-rite air bags, CB, Strobe lights, BedRug, BakFlipG2, TransferFlow in-bed 50gal tank, 2 Kicker 10" subs, Polk 1" tweeters, tinted front windows, Tuxedo Black Monotone option
Reply With Quote
  #74
Old 01-25-2013, 03:03 PM
jetpilot2's Avatar
jetpilot2 jetpilot2 is offline
Senior User

Join Date: Sep 2009
Location: Va Beach, VA
Posts: 489
jetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to beholdjetpilot2 is a splendid one to behold
Joel,

Mine was bought. There's a company that makes them for our trucks and I just took it in to the audio shop, they ordered it and did the complete install. I just don't have the time to be messin' with the stuff right now; and it's easier that way too!!
__________________

George - 2012 F-350 CC DRW 65 Gal. Titan Tank, AirLift Bags, B&W G/N, Line-X, Pace Edwards Electric Cover, JL Audio Speakers, Subs & Amp, and LockPic
2007 S/C F-150 FX2 Sold and replaced by a Mini Cooper (LOL)
Reply With Quote
  #75
Old 01-25-2013, 03:55 PM
ruschejj's Avatar
ruschejj ruschejj is offline
Postmaster

Join Date: Jan 2009
Location: Greenwood, SC
Posts: 4,699
ruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud ofruschejj has much to be proud of
Joel Rusche Joel Rusche Joel Rusche
Ya, I know what you mean. I kind of need a new head unit to replace my factory nav. I'm seriously considering having it done. I really don't want to tear into that dash.....
__________________
2015 F350 CC KR SRW LB 4x4, 3.55ELD, ordered 9/4/14, home 10/24/14. Factory 5th wheel set up, VIAIR #10009 kit, train horns, ride-rite air bags, CB, Strobe lights, BedRug, BakFlipG2, TransferFlow in-bed 50gal tank, 2 Kicker 10" subs, Polk 1" tweeters, tinted front windows, Tuxedo Black Monotone option
Reply With Quote
