Front axle complete seal replacement

Here are some pics from an overhaul I did of my front axle recently. I found some slop in the stub shaft bearing (needle bearing), my vacuum seals were leaking, my inner axle seals were leaking, and one hub bearing ended up being bad mostly from water intrusion through the seal.

I had greased the bearings through the abs hole a couple of years back, but this grease accumulated behind the bearing in front of the seal. I believe some of it got sucked into the vacuum line for the 4x4 at some point. The dirt and grease clogged the line.

The vacuum solenoid on the passenger fender wasn't working properly to unlock the hubs when i was finished. I tried to inspect and disassemble it but it's not really serviceable. I sprayed some lube through it (I think it was silicone spray) and that got it working properly again. 4x4 works perfectly! Yes the ESOF has more maintenance and points of failure, but as long as I can manually lock in my hubs I'm going to keep it. It's never let me down, and its super convenient.


Axle disassembly by cmaldridgephoto, on Flickr
Basic disassembly of axle to remove axle shafts. It would be possible to remove the shafts and the bearings together, but because of the size and the fact that the bearings can be stuck, I did it separately. I used a large two jaw puller to pull the flange of the bearing by pressing on the axle stub. The bearing came off easily with no hammering needed.


Axle tube by cmaldridgephoto, on Flickr
Pic of oil soaked axle tube. You can see the seal guide in this shot.


Cover Removed by cmaldridgephoto, on Flickr
Shot with front cover removed. As a Dana axle, the shims are behind the bearings. Removal wasn't too difficult using a large pry bar to pull the carrier out.


Carrier by cmaldridgephoto, on Flickr


Differential Housing by cmaldridgephoto, on Flickr
Front differential housing showing pinion gear and seal placement. Because of the size of this housing i was able to remove the seal and reinstall with conventional tools.


2011-11-21_22-08-36_651 by cmaldridgephoto, on Flickr
This is the complex rotating inner axle seal. The axle shaft doesn't spin in the seal. The inner part of the seal rotates inside the outer part.


Inner seal axle guide by cmaldridgephoto, on Flickr
This is the plastic cone that guides the axle shaft into the seal. I removed this to clean out crud that builds up between it and the seal itself.


Axle tube tool by cmaldridgephoto, on Flickr
Threaded rod with washer on end to help clean out axle tube and assist with seal removal. Used this to tap out guide cones


Seal installer by cmaldridgephoto, on Flickr
Official vacuum seal installer tool. Sets depth correctly. Takes a fair amount of hammering to get seal set in place.


Outer axle seal installed by cmaldridgephoto, on Flickr
Final installation of vacuum seal with proper tool. There is a slight offset of the seal to the thrust washer surface in the center.
__________________
Chris

ASE Certified Master Automotive Technician

Current Vehicles:
2002 F-250 7.3L PSD 4x4 XLT
2002 Sunset Orange Mettalic WS6 Trans Am Convertible

"Maybe is for those who lack skill"
Reply With Quote
  #2
Old 02-08-2012, 11:38 PM
biz4two's Avatar
biz4two biz4two is offline
Post Fiend

Join Date: Sep 2003
Location: Albuquerque
Posts: 5,237
biz4two has a great reputation on FTE.biz4two has a great reputation on FTE.biz4two has a great reputation on FTE.biz4two has a great reputation on FTE.
Thumbs up

Awesome tech write up! This should help many a SD owner...


biz
__________________

2012 FORD F250 SD CC 156" Lariat FX4 6.2L BOSS 4x4 4.30s
2003 F250 SD SC 142" XLT FX4 V10 Auto 4x4 3.73s -- Traded
1976 F150 LWB Custom 4x4 390FE NP435 3.50s
Reply With Quote
  #3
Old 03-03-2012, 11:42 AM
ccerniglia's Avatar
ccerniglia ccerniglia is offline
Senior User

Join Date: Aug 2006
Location: Bristol, CT
Posts: 486
ccerniglia is gaining momentum as a positive member of FTE.ccerniglia is gaining momentum as a positive member of FTE.
Nice write up, hope this made it in the Tech Folder.
__________________
Chris Connecticut Chapter Parts Counterman

Rides:
2006 Mazdaspeed 6 GT
2003 F-250 Super Duty XLT FX4 Sport Crew Cab .
Reply With Quote
  #4
Old 03-03-2012, 12:09 PM
Tom's Avatar
Tom Tom is offline
Moderator

Join Date: Aug 2003
Location: Union, CT
Posts: 14,840
Tom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputationTom has a superb reputation
TomB985
Quote:
Originally Posted by ccerniglia View Post
Nice write up, hope this made it in the Tech Folder.
Done.

http://www.ford-trucks.com/forums/49...ml#post3727094
__________________
Tom,

Currently truckless.
Most recently: 2013 F150 XLT 4x4 EcoBoost
Moderators, Guidelines, and How They are Enforced
Reply With Quote
  #5
Old 05-08-2013, 07:13 PM
shore shore is offline
Senior User

Join Date: Apr 2008
Location: Deforest
Posts: 217
shore is starting off with a positive reputation.
Thank you for posting this! Im having some of the same trouble with my 02. This is very informative!
Reply With Quote
  #6
Old 05-08-2013, 08:51 PM
99f350sd 99f350sd is offline
Post Fiend

Join Date: May 2003
Location: Lyndonville, Vermont
Posts: 7,760
99f350sd is gaining momentum as a positive member of FTE.99f350sd is gaining momentum as a positive member of FTE.
In pic 6 is that the inner seal? If it is its alot more complex than I realized...Also it doesn't matter if you hammer the outer seal on flush. It works great in that position also. Nice to see a pic of the cone to center the axle.
Reps sent...Thanks


Dick
__________________
99 F350 5.4 Lockers,Warn winch,Hubs..MDII Plow, 200 amp alt timbrens,Revo's.2 24 " LED bar lights
THREE 96 aero*awd 4.0 ext. GREEN,BLUE,WHITE.Blue for parts//rust
2010 SUZUKI SX4 AWD CVT NICE
USAF 76-80
CX500 TURBO ORIG OWNER
Reply With Quote
  #7
Old 05-08-2013, 10:01 PM
EXv10's Avatar
EXv10 EXv10 is offline
Post Fiend

Join Date: Mar 2009
Location: Mt. Shasta California
Posts: 11,124
EXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputation
Quote:
Originally Posted by 99f350sd View Post
In pic 6 is that the inner seal? If it is its alot more complex than I realized...Also it doesn't matter if you hammer the outer seal on flush. It works great in that position also. Nice to see a pic of the cone to center the axle.
Reps sent...Thanks


Dick
Yes that is the seal that holds the oil in the gearset cavity and the cone only serves to guide the axle into place. OP; Thanks for posting.
__________________
No arguing !
Reply With Quote
  #8
Old 05-26-2013, 07:28 PM
Buck268's Avatar
Buck268 Buck268 is offline
Senior User

Join Date: Feb 2003
Location: Grand Rapids, MI
Posts: 285
Buck268 is starting off with a positive reputation.
Since you seem motivated to keep your ESOF I'm not sure I'm barking up the right tree, but the hands on from the rebuild might be enough experience to know. I have manual (Warn) hubs and am pretty sure the passenger wheel bearing assembly is starting to go for me. Are any of the seals related to a front wheel bearing assembly replacement important for manual locking hubs (eg: do they function to protect and not just seal vacuum)? Obviously the hub locker unit itself has the o-ring seal, but beyond that are any like the yellow or the knuckle seal worth replacing "just to be safe"?
__________________
2011 F150 XLT Supercab 4x4 5.0 on P265/70r17 Cooper AT3's with Bilstein 5100 on all four corners.
Reply With Quote
  #9
Old 05-26-2013, 08:00 PM
EXv10's Avatar
EXv10 EXv10 is offline
Post Fiend

Join Date: Mar 2009
Location: Mt. Shasta California
Posts: 11,124
EXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputationEXv10 has a superb reputation
I knew you didn't need all those special tools (as I formerly posted).
__________________
No arguing !
Reply With Quote
  #10
Old 08-25-2013, 04:16 PM
Ken05 Ken05 is offline
Freshman User

Join Date: Nov 2009
Posts: 47
Ken05 is starting off with a positive reputation.
Thanks to the info here I was able to tackle this job, the only thing I would add is have a puller for the wheel hubs makes life easier and lots of WD-40.
The hardest part was trying to figure out where to pry on the knuckle to get it out. Having never done it and not knowing how much force to use it took about a half hour to get a handle on it. So here is a pic of what I found to be the perfect spot to pry. I was able to ease it out very slowly about halfway and then I put the bar down and gently removed it. Nice and simple when you know what bar to use and were to apply leverage. Hope the photo helps some other first timer.
Reply With Quote
  #11
Old 08-27-2013, 06:12 PM
jhill603085 jhill603085 is offline
New User

Join Date: Jan 2012
Posts: 11
jhill603085 is starting off with a positive reputation.
Im about to tackle this repair on my own truck, and that last photo I think will be invaluable, as that part of removing the carrier is what had me worried the most!

Just a question about installing the inner seals. Would a rented bearing and race installer rented from an auto parts store be sufficient?

About how much force does it require to remove? And will the whole carrier come out prying from just that location? Or is prying on the opposite side to sort of wiggle it out also required?
Reply With Quote
  #12
Old 08-27-2013, 06:28 PM
99f350sd 99f350sd is offline
Post Fiend

Join Date: May 2003
Location: Lyndonville, Vermont
Posts: 7,760
99f350sd is gaining momentum as a positive member of FTE.99f350sd is gaining momentum as a positive member of FTE.
Welcome to the ford site!

Sometimes the carriers just fall out...You mean a rented seal installer? As far as the bearings on the diff you should go to a machine shop and have them done..The seal tool is specific for the seals on the D60 or D50...Guy's have made one before..


Dick
__________________
99 F350 5.4 Lockers,Warn winch,Hubs..MDII Plow, 200 amp alt timbrens,Revo's.2 24 " LED bar lights
THREE 96 aero*awd 4.0 ext. GREEN,BLUE,WHITE.Blue for parts//rust
2010 SUZUKI SX4 AWD CVT NICE
USAF 76-80
CX500 TURBO ORIG OWNER
Reply With Quote
  #13
Old 08-27-2013, 10:49 PM
aldridgec's Avatar
aldridgec aldridgec is offline
Postmaster

Join Date: Mar 2002
Location: Baltimore USA
Posts: 3,542
aldridgec has a very good reputation on FTE.aldridgec has a very good reputation on FTE.aldridgec has a very good reputation on FTE.aldridgec has a very good reputation on FTE.
Just stopped by FTE and saw I had some new comments on this thread. I usually use a large pry bar from the center of the bottom of the axle housing, into the center where the spider gears are and right up against the ring gear to get and even pull on it. This also traps the diff so it doesn't come flying out. Using the crow bar in the above picture can work, but it can also sideload the differential and cause it to get stuck needing it to be walked out. However, I've always had a lift and 3-4 feet of clearance below the vehicle to use a large pry bar from below, so the crow bar is an excellent alternative. Leverage is the key to controlling the removal of the diff.

The seals all work to protect the bearing from water/debris intrusion, so as in the case with my personal truck, and other trucks that have had manual hubs (they use the same seal from what I remember), the seals are important to protect the bearing, but not for the manual hub to work (of course)

I don't remember exactly how I installed the inner seals. May have just been two ball peen hammers. But there was no special installer needed as it states in the book. The seal installer will probably be too long to swing the hammer and hit it inside the differential.
__________________
Chris

ASE Certified Master Automotive Technician

Current Vehicles:
2002 F-250 7.3L PSD 4x4 XLT
2002 Sunset Orange Mettalic WS6 Trans Am Convertible

"Maybe is for those who lack skill"
Reply With Quote
  #14
Old 08-28-2013, 08:05 PM
Ken05 Ken05 is offline
Freshman User

Join Date: Nov 2009
Posts: 47
Ken05 is starting off with a positive reputation.
Here are some more pics ( truck- 2005 f-350 fx with auto hubs)

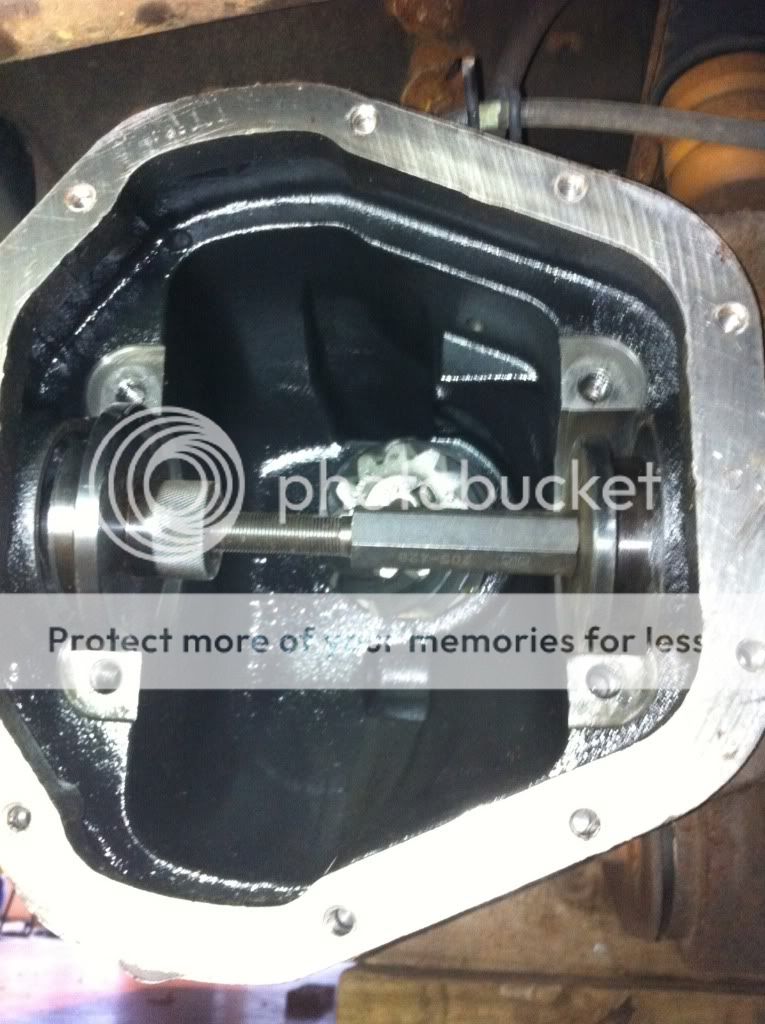

Seal spreader tool I picked up off eBay worth every penny ( 75.00)
Ford special tool numbers
205-428 spreader bar
205-426 RH seal installer
205-427 LH seal installer



New version of the dust seal


Updated dust seal number

Last edited by Ken05; 08-28-2013 at 08:22 PM. Reason: Truck year
Reply With Quote
  #15
Old 08-28-2013, 08:18 PM
Ken05 Ken05 is offline
Freshman User

Join Date: Nov 2009
Posts: 47
Ken05 is starting off with a positive reputation.


Tool used for the big outer seal (aaa battery next to it for size reference )I picked up off amazon for 65.00 yes the tools were exspensive but I wouldn't want to gamble with the inner axle seals.
The tool seats them perfectly and I don't have to wonder if I was at the correct depth or if they were damaged with a homemade tool ( done that plenty)
